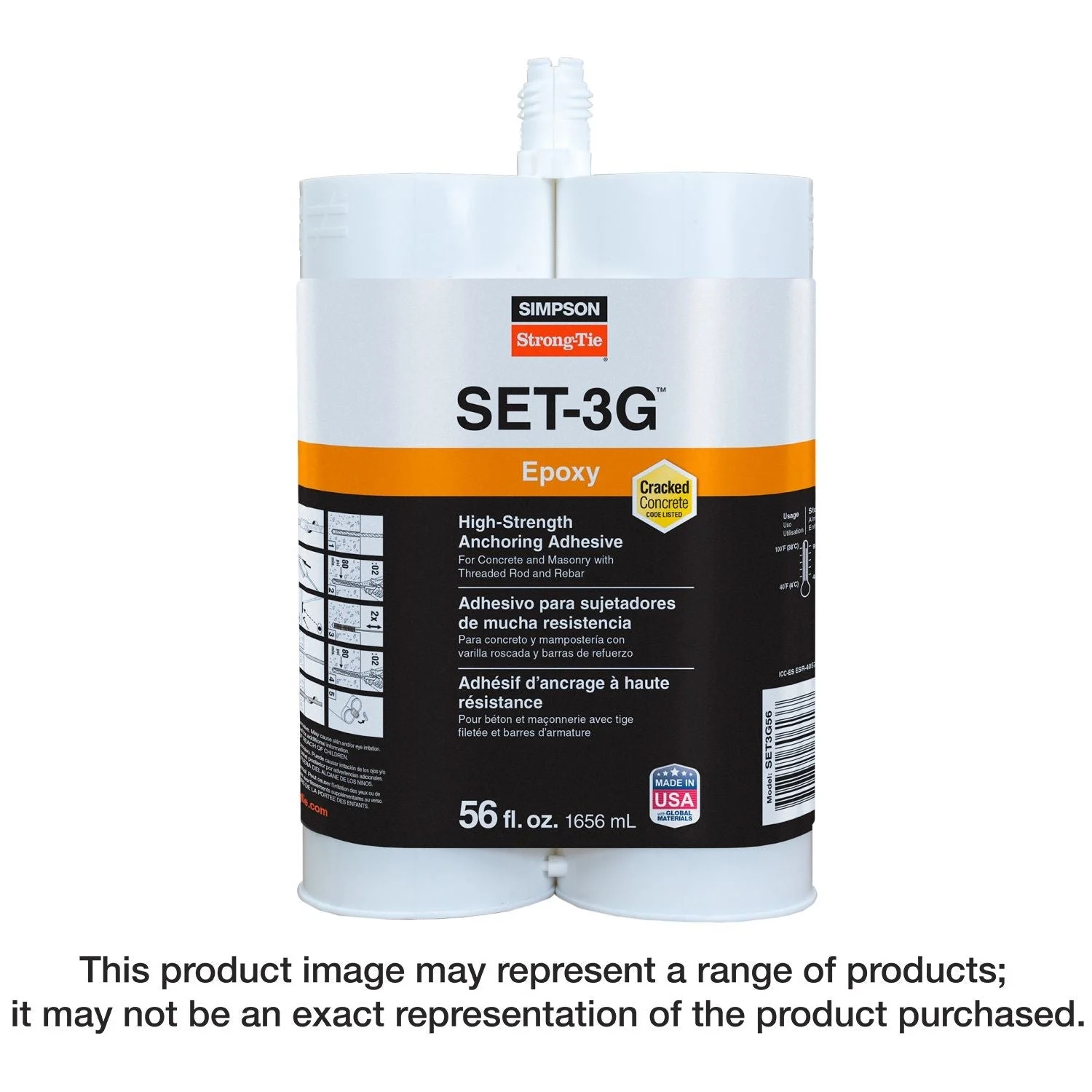

Simpson Strong-Tie SET3G56 SET-3G 56 oz. High-Strength Epoxy Adhesive

• Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
• Recognized per ICC-ES AC308 for post-installed rebar development and splice length design provisions
• Design flexibility — improved sustained load performance at elevated temperature
• Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from –40°F (–40°C) to 176°F (80°C)
• Manufactured in the USA using global materials
• 56 oz. cartridge
• Tested in accordance with ICC-ES AC308 (ESR-4057), ACI 355.4 and applicable ASTM test methods
• Approved for installation with multiple vacuum-drill bit systems without further hole cleaning; see Code Report (ESR-4057) for approved systems

SET-3G is an epoxy-based anchoring adhesive with high design strength and proven performance. The adhesive is a 1:1 ratio, two-component, anchoring adhesive formulated for anchoring threaded rod and rebar into concrete (cracked and uncracked). This low-odor adhesive is a uniform gray color when mixed properly and has a substrate installation temperature range from 40°F (4°C) to 100°F (38°C). SET-3G installs and performs in a variety of environmental conditions and temperature extremes and is suitable for use in dry concrete, water-saturated concrete, water-filled holes and submerged concrete.

• Exceptional performance — superior bond strengths permit ductile solutions in high seismic areas
• Recognized per ICC-ES AC308 for post-installed rebar development and splice length design provisions
• Design flexibility — improved sustained load performance at elevated temperature
• Jobsite versatility — can be specified for all base material conditions when in-service temperatures range from –40°F (–40°C) to 176°F (80°C)
• Manufactured in the USA using global materials
• 56 oz. cartridge
• Tested in accordance with ICC-ES AC308 (ESR-4057), ACI 355.4 and applicable ASTM test methods
• Approved for installation with multiple vacuum-drill bit systems without further hole cleaning; see Code Report (ESR-4057) for approved systems

Install With: Use only Simpson Strong-Tie mixing nozzles in accordance with Simpson Strong-Tie instructions. Modification or improper use of mixing nozzle may impair SET-3G adhesive performance.
