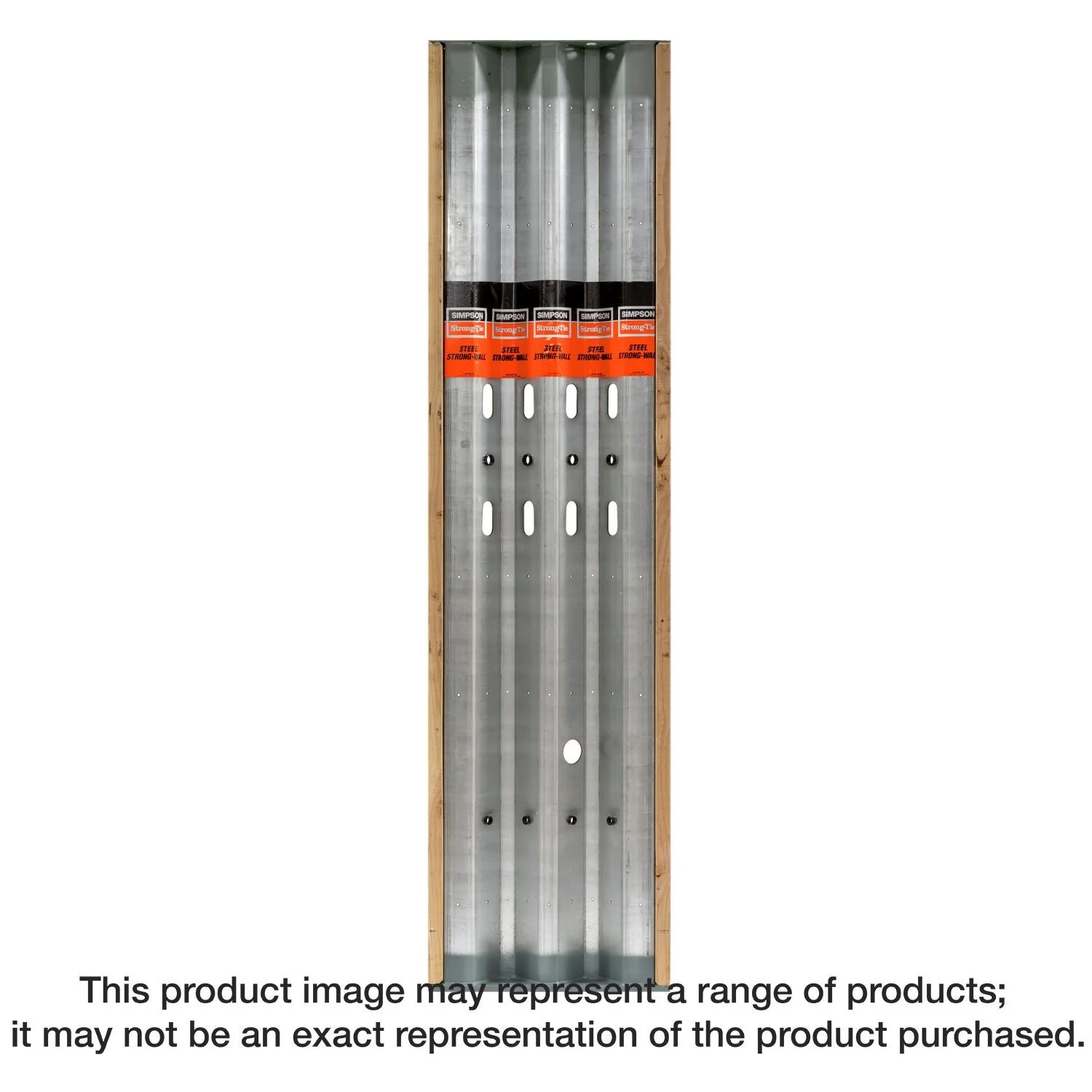

Simpson Strong-Tie SSW24X8 24-in. x Nominal 8 ft. Steel Strong-Wall Shearwall

• Fewer anchor bolts and fasteners coupled with easy access to the top and bottom of the wall result in more efficient installation
• An easy-to-use anchor-bolt template for concrete contractors
• Preattached wood studs and predrilled holes where framers and electricians need them for wiring
• Wall size: 24 in. x 93-1/4 in.
• Vertical panel made from 10-gauge steel
• Vertical panel — galvanized; top and base plates — Simpson Strong-Tie gray paint

The Steel Strong-Wall shearwall is a prefabricated, steel panel that helps structures resist lateral forces such as those created by earthquakes and high winds. Designed with easy installation in mind, the Steel Strong-Wall features some of the highest allowable loads in the industry. This code-listed shearwall is suitable for residential construction.

• Fewer anchor bolts and fasteners coupled with easy access to the top and bottom of the wall result in more efficient installation
• An easy-to-use anchor-bolt template for concrete contractors
• Preattached wood studs and predrilled holes where framers and electricians need them for wiring
• Wall size: 24 in. x 93-1/4 in.
• Vertical panel made from 10-gauge steel
• Vertical panel — galvanized; top and base plates — Simpson Strong-Tie gray paint

Install With: Install with (2) 1 in. diameter anchor bolts (not included), (2) heavy hex nuts (included) and (14) 1/4 in. x 3-1/2 in. SDS screws (included)
