Key Features
Built for Corrosion The stainless steel body is the right call for treated lumber, outdoor framing, and wet environments where a standard hanger is not enough. Double-Shear Strength Double-shear nailing spreads load through two points on each joist nail, which boosts strength while cutting down the number of nails needed. Fast 2×10 Install This Simpson Strong-Tie face-mount joist hanger uses speed prongs to hold position while you start fastening, which makes layout and install quicker on framing work.
Overview

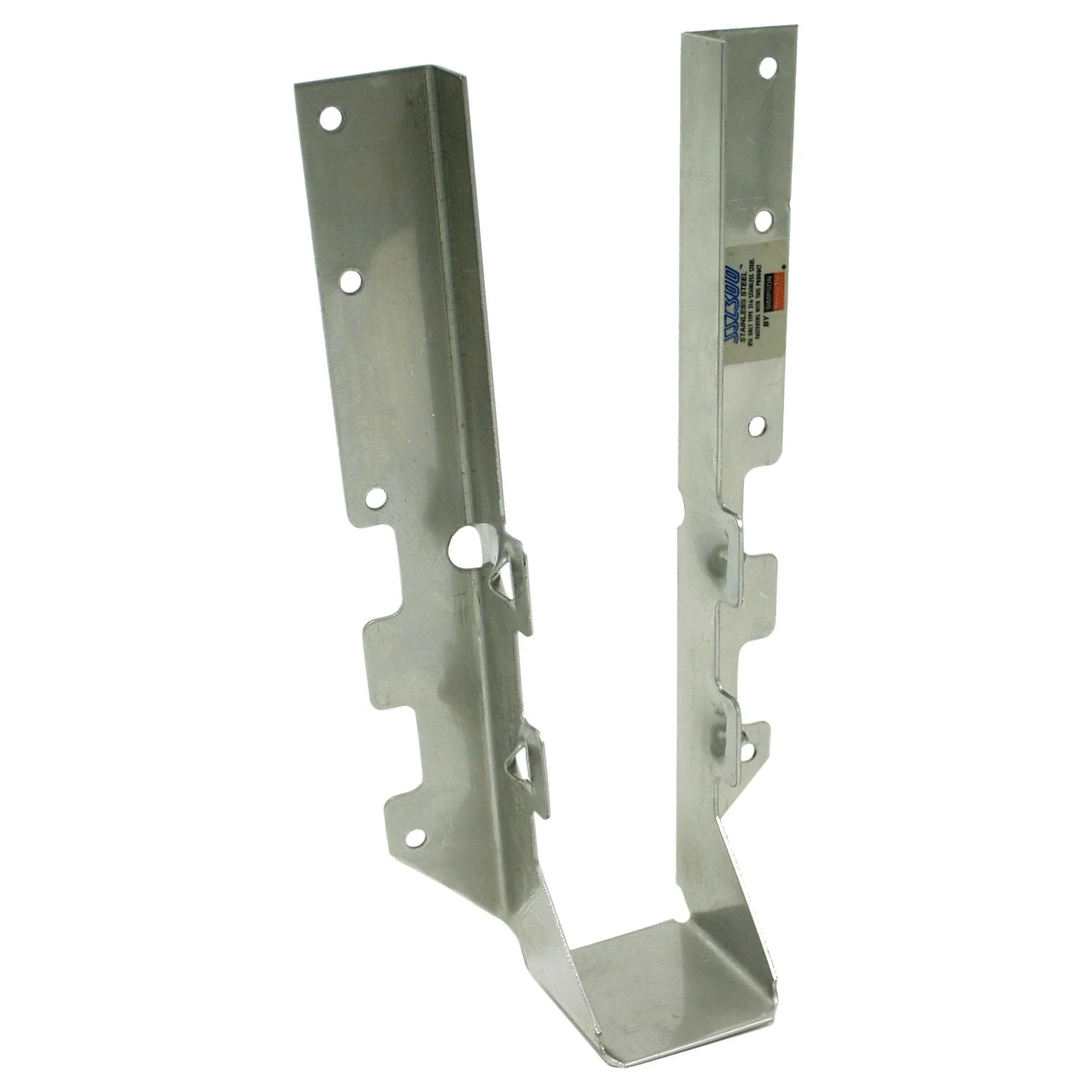

The Simpson Strong-Tie LUS210SS Stainless-Steel Face-Mount Joist Hanger for 2×10 is a stainless steel face-mount hanger made to support nominal 2×10 framing members in wood construction. This is a face-mount joist hanger designed for supporting and connecting a 2×10 joist to a header or beam. Model Number: LUS210SS. If you are framing decks, exterior structures, marine-adjacent work, or any job using treated lumber where corrosion matters, this is the version you want instead of a basic coated hanger.
What makes the LUS series popular is that it is straightforward to install without giving up load performance. Simpson’s double-shear nailing design drives the joist nails at an angle through the joist into the header, so the connection carries load through two points on each joist nail. In practical terms, that means strong joist support with fewer nails than older hanger styles, plus easier fastening when you are working tight to a beam or ledger.
This specific LUS210SS size is built for a nominal 2×10 member and uses an 18-gauge body with a width of 1-9/16 inches and overall height of 7-13/16 inches. The compact width fits the member it is intended for, while the taller side walls give the joist solid vertical support. Speed prongs help hold the hanger in place temporarily before full fastening, which saves time during layout and keeps the hanger from shifting while you start your nails or approved stainless fasteners.
Material matters here. The LUS210SS is stainless steel, and supplementary product data identifies it as Type 316 stainless steel. That makes it a smart pick for exterior framing, exposed structures, docks, pergolas, pool-side work, and other moisture-heavy jobs where corrosion resistance is not optional. It is also listed as suitable for treated lumber, which is important because the wrong connector material can shorten the life of the whole connection.
On the code and performance side, the LUS series is tested, load rated, and code compliant. For the LUS210SS, Simpson lists allowable loads up to 1,340 lbs for floor loading in Douglas Fir/Southern Pine and up to 1,145 lbs for floor loading in SPF/Hem-Fir, with higher values shown for snow and roof loading conditions. That gives engineers, builders, and inspectors published numbers to work from instead of guesswork. As always with connectors, those published loads depend on using the specified fasteners and following the installation details.
For fastening, the stainless model is matched to stainless fasteners. Simpson’s load table for the LUS210SS calls for 8 stainless 10d nails in the header and 4 stainless 10d nails in the joist. Supplementary seller data also notes to use Type 316 stainless steel nails or fasteners. The big takeaway is simple: if you buy the stainless hanger for corrosion resistance, do not ruin the connection by pairing it with the wrong fastener material.
The Simpson Strong-Tie LUS210SS Stainless-Steel Face-Mount Joist Hanger for 2×10 is a strong fit for deck builders, framers, remodelers, marine contractors, and serious DIY users building outdoor wood structures. If your job is interior dry framing, a galvanized version may be enough. If your job is exposed, damp, treated, or near salt air, the stainless version earns its keep fast.
At a Glance
18 Ga. Steel Thickness 7-13/16 in. Overall Height 1,340 lbs DF/SP Floor Load 8 + 4 Stainless Nail Pattern
Made for Real Exterior Framing
This hanger is built for the kind of framing where moisture, treated lumber, and exposure can wreck the wrong connector. Stainless construction gives the connection a better shot at lasting as long as the structure around it.
- Stainless steel body suited for treated lumber and corrosion-prone applications
- Common use cases include decks, pergolas, docks, fencing, and exterior wood framing
Faster Layout, Stronger Connection
The LUS design is popular because it installs clean and carries real load. Speed prongs help hold the hanger in place, and double-shear nailing improves strength without asking for a pile of extra fasteners.
- Speed prongs temporarily position and secure the connector for easier installation
- Double-shear nailing uses angled joist nailing for greater strength with fewer nails
Published Loads You Can Build Around
This is not just a piece of bent metal. It is a tested, load-rated wood connector with listed allowable loads, which is exactly what matters when you are matching hardware to a framing plan or inspection requirement.
- DF/SP allowable floor load: 1,340 lbs; snow load: 1,525 lbs; roof load: 1,650 lbs
- SPF/HF allowable floor load: 1,145 lbs; snow load: 1,305 lbs; roof load: 1,415 lbs
What’s in the Box
- (1) Simpson Strong-Tie LUS210SS Stainless-Steel Face-Mount Joist Hanger for 2×10
Fasteners are not included.
Key Specifications
| Material | Stainless Steel |
|---|---|
| Gauge | 18 ga. |
| Nominal Joist Size | 2×10 |
| Width | 1-9/16 in. |
| Height | 7-13/16 in. |
| Seat Depth | 1-3/4 in. |
| Header Fasteners | (8) Stainless 10d nails |
| Joist Fasteners | (4) Stainless 10d nails |
Compatibility
Fastener Material Use stainless steel nails or approved stainless fasteners with this stainless steel joist hanger. Supplementary installation guidance specifically calls for Type 316 stainless steel fasteners. Member Size Sized for nominal 2×10 wood framing members in face-mount joist hanger applications. Framing Systems Tested and load rated for solid sawn lumber and supplementary seller data also lists engineered wood compatibility.
Built For
Deck Framing Exterior Carpentry Marine & Dock Work Pergolas & Outdoor Structures General Wood Framing Remodeling Construction DIY / Hobbyist
Pro Tip
If you want the published load numbers, use every specified fastener and drive the joist nails at the required angle through the joist into the header. Skipping holes or mixing in the wrong fastener material is the fastest way to turn a rated connector into a guess.
Tool Nut’s Take
Tool Nut’s Take
Why the Simpson Strong-Tie LUS210SS Stainless-Steel Face-Mount Joist Hanger for 2×10 Earns Its Spot
This is the hanger you buy when the connection has to survive weather, treated lumber, and time without cutting corners on load data.
- Who it’s for: Deck builders, framers, remodelers, and serious DIY users working on exterior or high-moisture wood framing.
- Why it stands out: Stainless construction, double-shear nailing, speed prongs, and published load ratings make it more than just a basic bracket.
- Worth knowing: This is not a bend-to-fit connector and fasteners are not included, so plan on using the proper stainless nails or approved stainless fasteners from the start.
Common Questions
- What size member is this hanger designed for? The LUS210SS is sized for a nominal 2×10 wood member.
- Is this hanger suitable for treated lumber? Yes. Supplementary seller data lists it as suitable for treated lumber, and the stainless steel construction is intended for corrosion-resistant applications.
- Can this hanger be modified in the field? No. Simpson states the connector cannot be modified.
- Is this connector load rated and code compliant? Yes. Simpson states the LUS-series hangers are tested, load rated, and code compliant.
