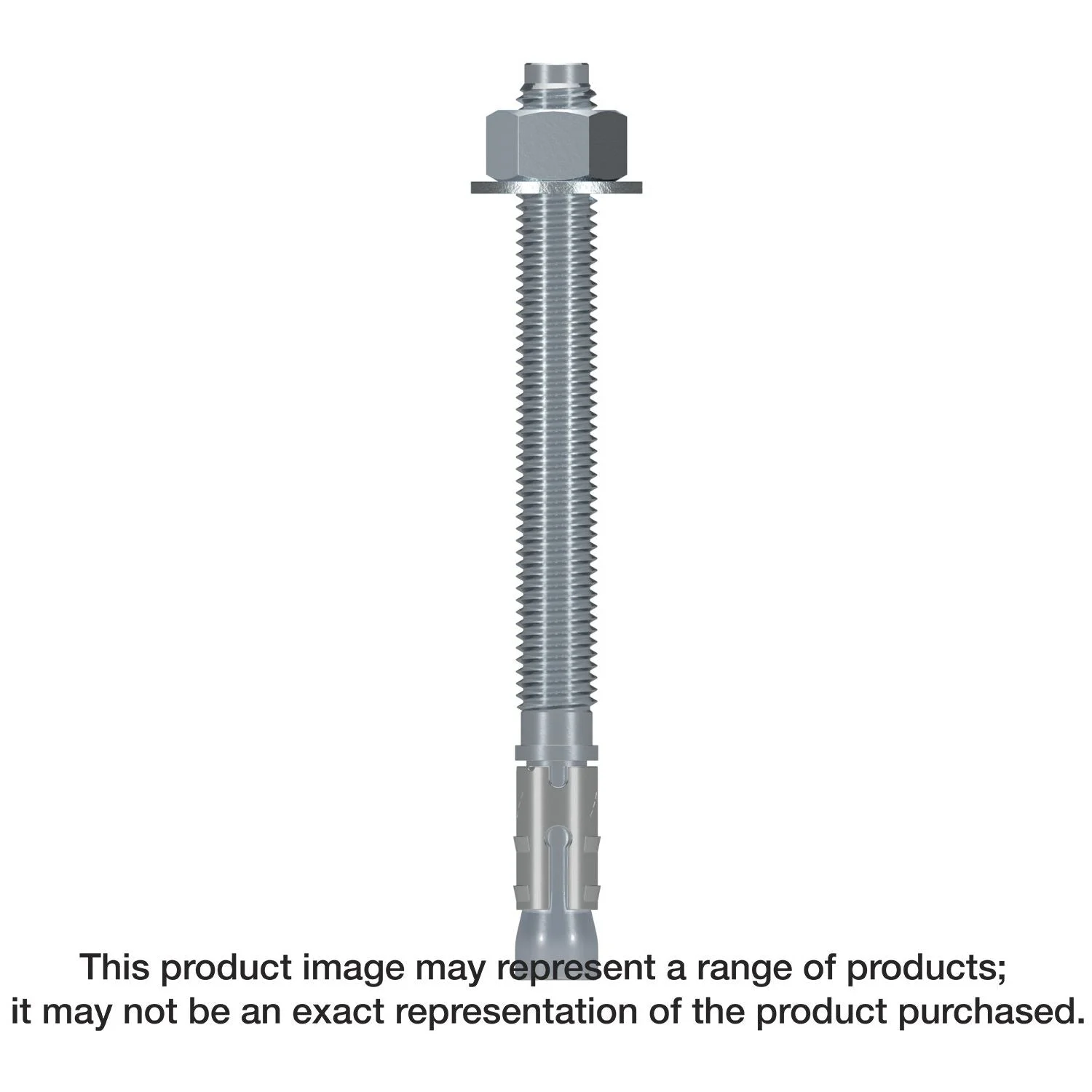

Simpson Strong-Tie STB2-62500C10 Strong-Bolt 2, 5/8-in. x 5-in. Wedge Anchor, 10-Pack

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Tested per ACI355.2 and AC193
• Size: 5/8 in. x 5 in.
• Made from zinc-plated carbon steel
• Quantity: 10 per package

Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Tested per ACI355.2 and AC193
• Size: 5/8 in. x 5 in.
• Made from zinc-plated carbon steel
• Quantity: 10 per package

Install With: Installs with 5/8 in. drill bit and 15/16 in. wrench size
