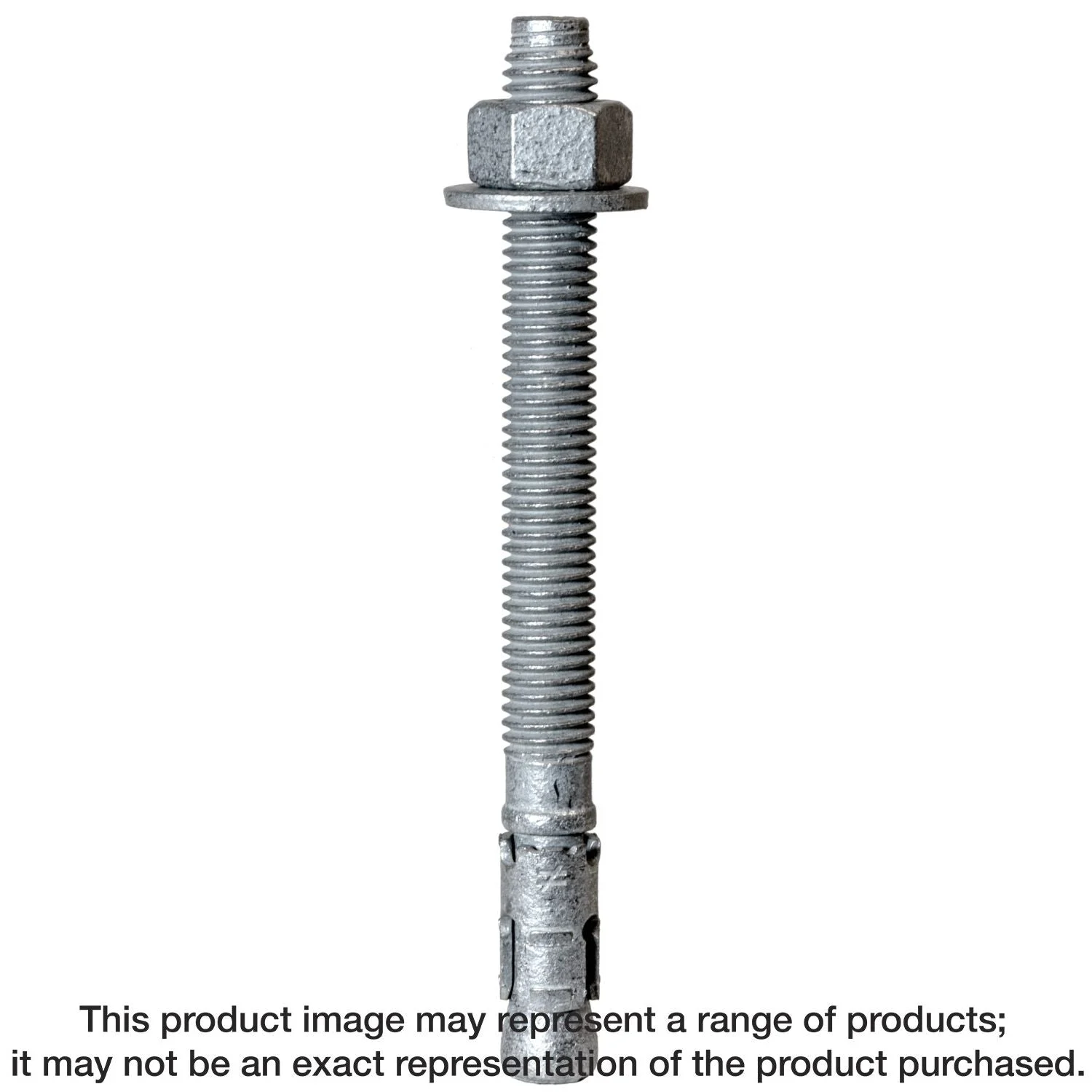

Simpson Strong-Tie STB2-75434MGR10 Strong-Bolt 2, 3/4-in. x 4-3/4-in. Mechanically Galvanized Wedge Anchor, 10-Pack

• Chamfered top designed to prevent mushrooming during installation
• Suitable for horizontal, vertical and overhead applications
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193
• Size: 3/4 in. x 4-3/4 in.
• Mechanically galvanized
• Quantity: 10 per package

The Simpson Strong-Tie Strong-Bolt 2 wedge-type expansion anchor in a mechanically galvanized finish can be used where a high-load-resisting anchor is needed for exterior applications. It has the same dual undercutting embossments on each clip segment as the zinc-electroplated version. Suitable for horizontal, vertical and overhead applications, the STB2-MG anchor is tested in uncracked concrete in accordance with AC193 and also in uncracked masonry in accordance with AC01.

• Chamfered top designed to prevent mushrooming during installation
• Suitable for horizontal, vertical and overhead applications
• Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
• Tested per ACI355.2 and AC193
• Size: 3/4 in. x 4-3/4 in.
• Mechanically galvanized
• Quantity: 10 per package

Install With: Installs with 3/4 in. drill bit and 1-1/8 in. wrench size
