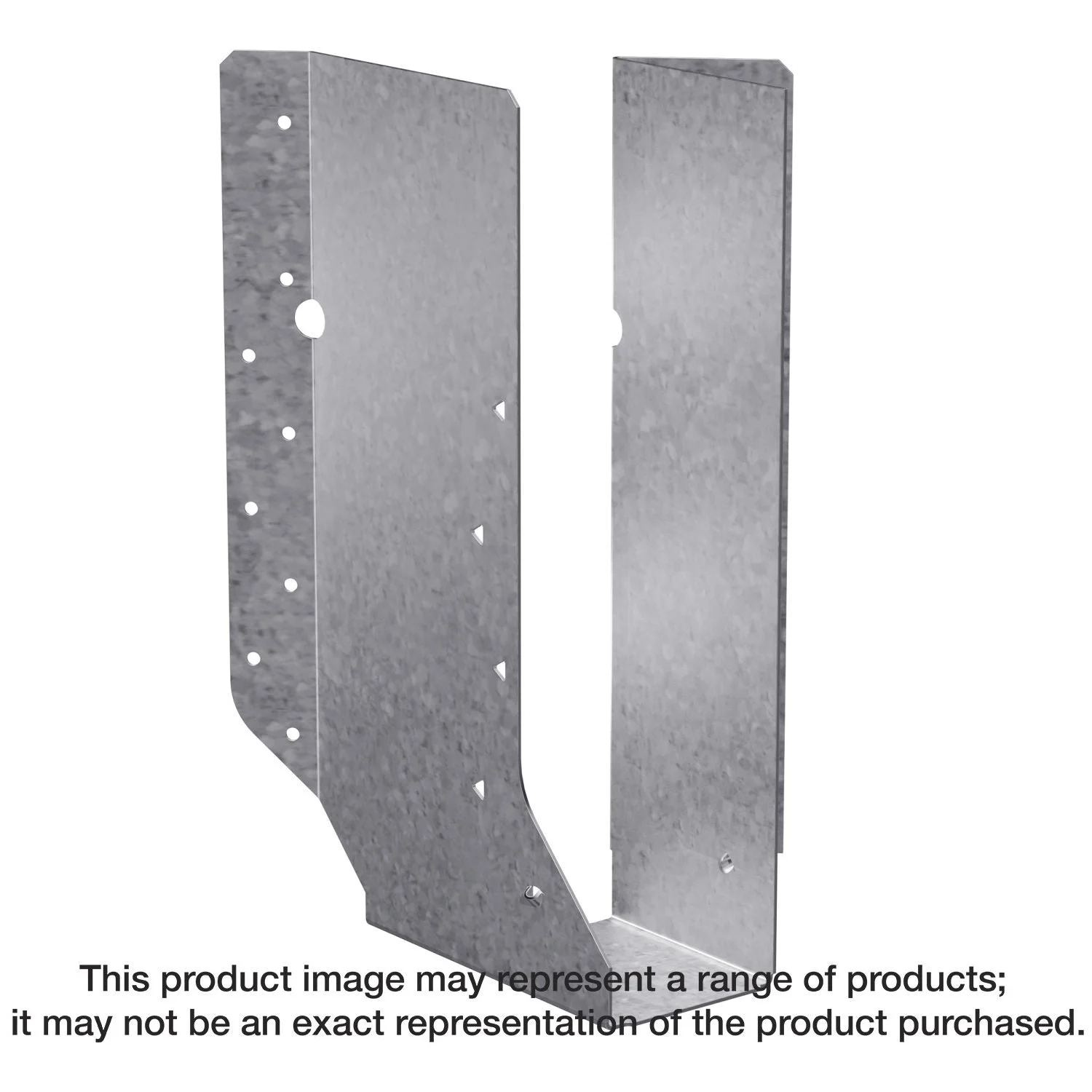

Simpson Strong-Tie SUL210 SUL Galvanized Joist Hanger for 2×10, Skewed Left

• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
• The joist end may be square cut or bevel cut
• Nominal joist size: 2×10 or 2×12
• Galvanized (G90) for extra corrosion resistance

The SUR/L are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
• Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
• The joist end may be square cut or bevel cut
• Nominal joist size: 2×10 or 2×12
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
