- SUR = skewed right
- These hangers will normally accommodate a 40° to 50° skew
- The joist end may be square cut or bevel cut
- Angled nail slots direct nails for proper installation
- Nominal joist size: Double 2×10 or 2×12
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

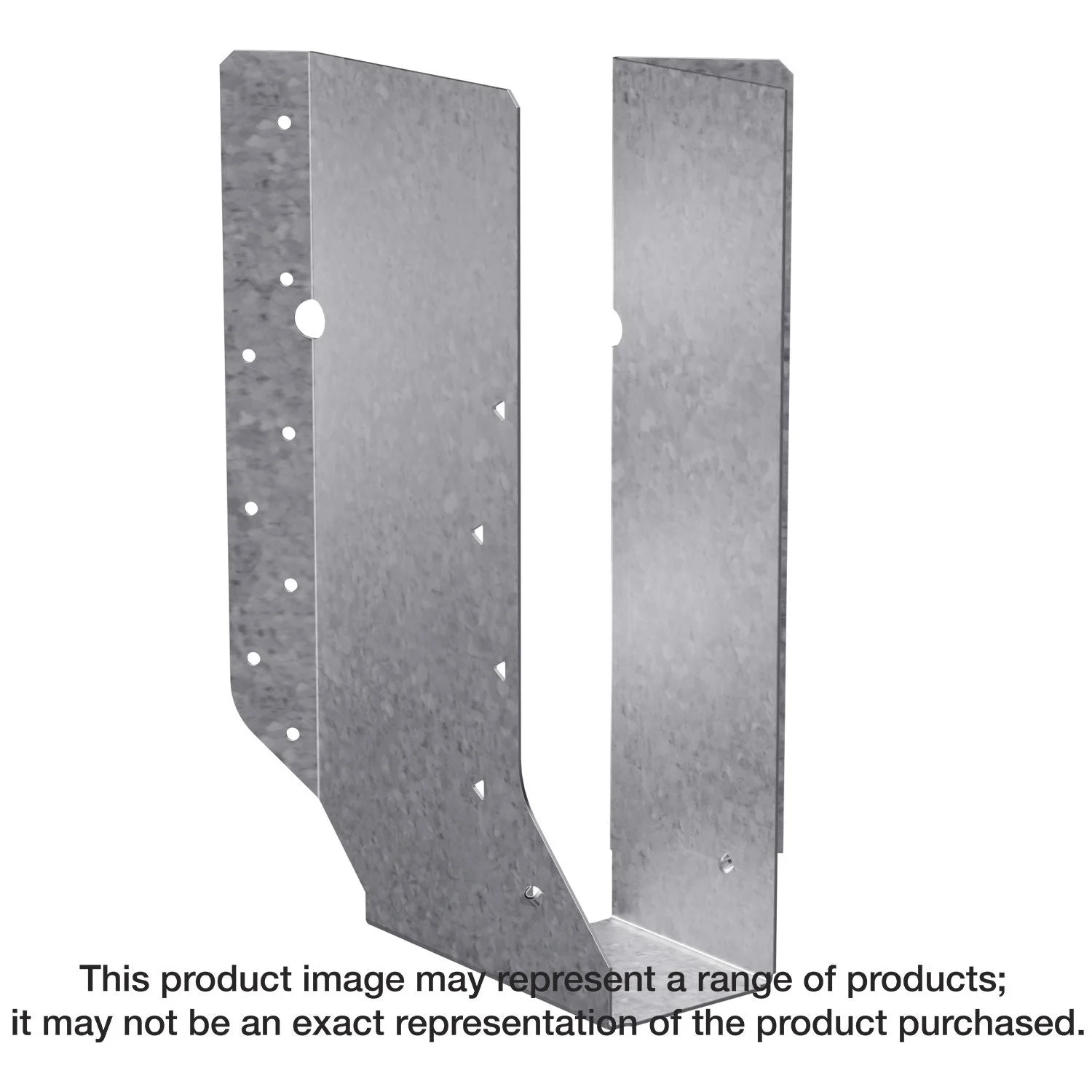

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.
- SUR = skewed right
- These hangers will normally accommodate a 40° to 50° skew
- The joist end may be square cut or bevel cut
- Angled nail slots direct nails for proper installation
- Nominal joist size: Double 2×10 or 2×12
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with (14) 0.162 in. x 3-1/2 in. nails in the face and (6) 0.162 in. x 2-1/2 in. nails in the joist
