- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
- Min./max. nailing installation options
- Seat width: 7-1/4 in.
- Hanger height: 26-1/16 in.
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance

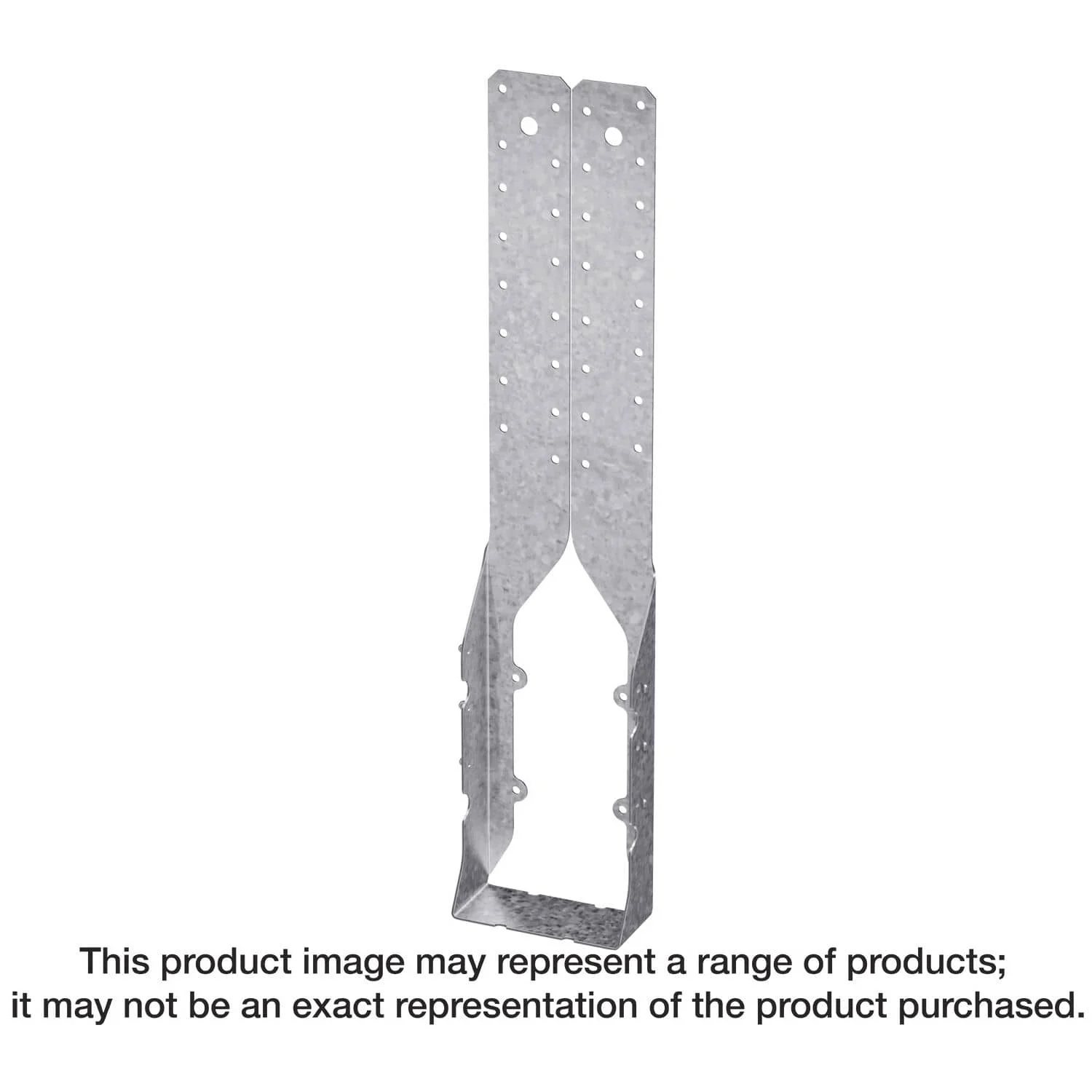

The Simpson Strong-Tie THAC is a wood connector designed to support trusses and beams. This versatile U-shaped truss hanger features long, straight straps for applications where the height location of the truss needs to be adjustable. The field-adjustable THAC features concealed flanges for applications in restricted spaces.
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
- Dense nail pattern in the straps provides more installation options and allows for easy top-flange installation
- Min./max. nailing installation options
- Seat width: 7-1/4 in.
- Hanger height: 26-1/16 in.
- Made from 14-gauge steel
- Galvanized (G90) for corrosion resistance
Install With: For top-flange installation, install with (8) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist; for face-mount installation, install with (38) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
