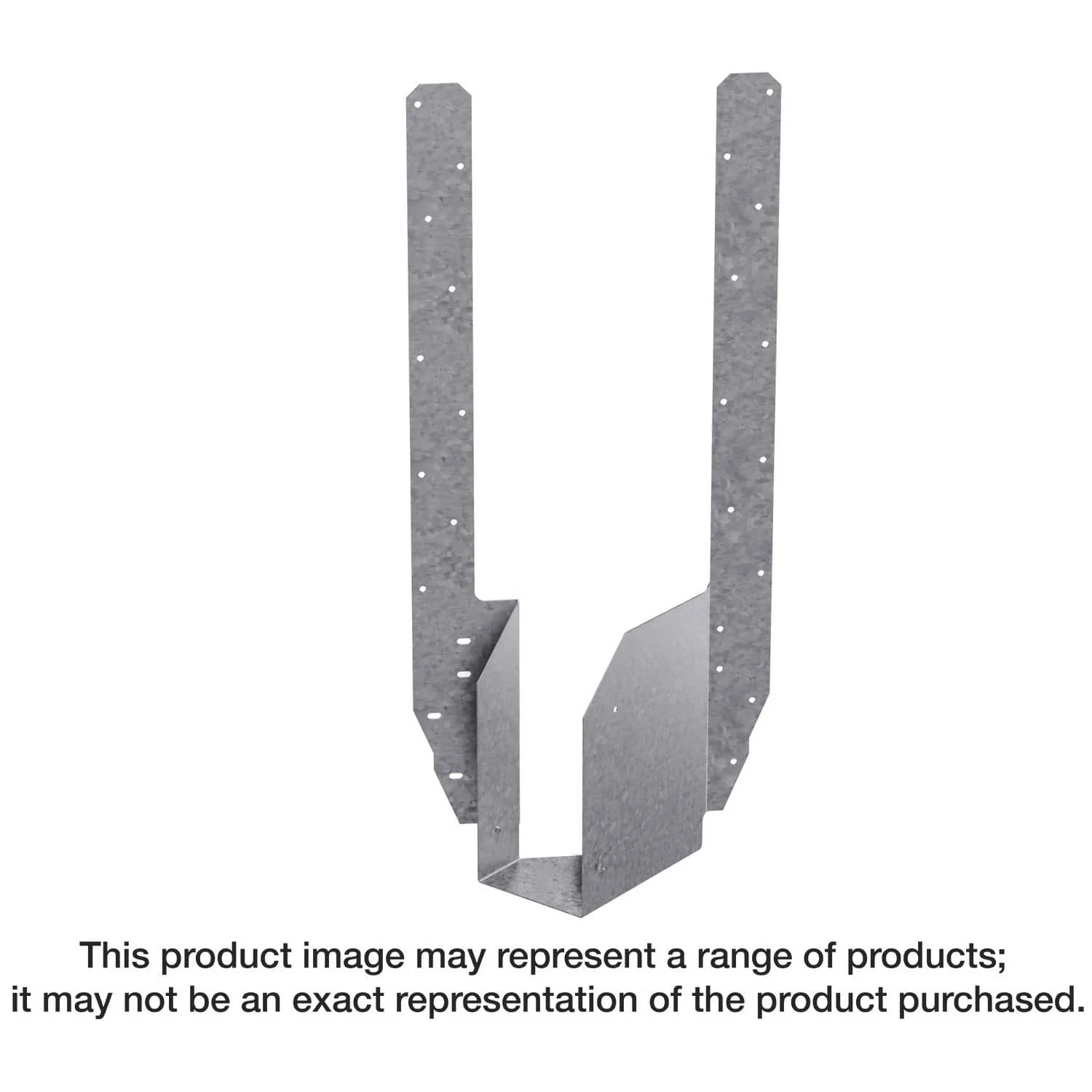

Simpson Strong-Tie THAL422 THAL 22-5/8-in. Galvanized Adjustable Hanger for 4x Floor Truss, Skewed Left 45°

• Eliminates the need for special orders
• Can be used for top-flange or face-mount installation
• Extra-long straps for height adjustability and top-flange installation convenience
• Skewed left; for skewed-right hanger, order THAR422
• Minimum carried member: 4×10
• Seat width: 3-5/8 in.
• Height: 22-5/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

The THAR/THAL is designed to support 4×2 trusses and 4x beams. This versatile U-shaped truss hanger features positive-angle nailing (PAN) to help eliminate splitting of truss bottom chords. The field-adjustable THAR has a 45° skew to the right, while the THAL has a 45° skew to the left.

• Eliminates the need for special orders
• Can be used for top-flange or face-mount installation
• Extra-long straps for height adjustability and top-flange installation convenience
• Skewed left; for skewed-right hanger, order THAR422
• Minimum carried member: 4×10
• Seat width: 3-5/8 in.
• Height: 22-5/8 in.
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: 0.148 x 1-1/2 in. nails and 0.148 in. x 3 in. nails
