Simpson Strong-Tie THASL422 THASL Galvanized Adjustable Truss Hanger for 4×22, Skewed Left

• Eliminates the need for special orders
• Replaces the former THASL418
• One acute side bend line to ease design and installation
• Joist fasteners are only required from one side for skews greater than 22-1/2°
• Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws
• Minimum carried member: 4x truss
• Width: 3-5/8 in.
• Height: 22 in.
• Made from 16-gauge steel

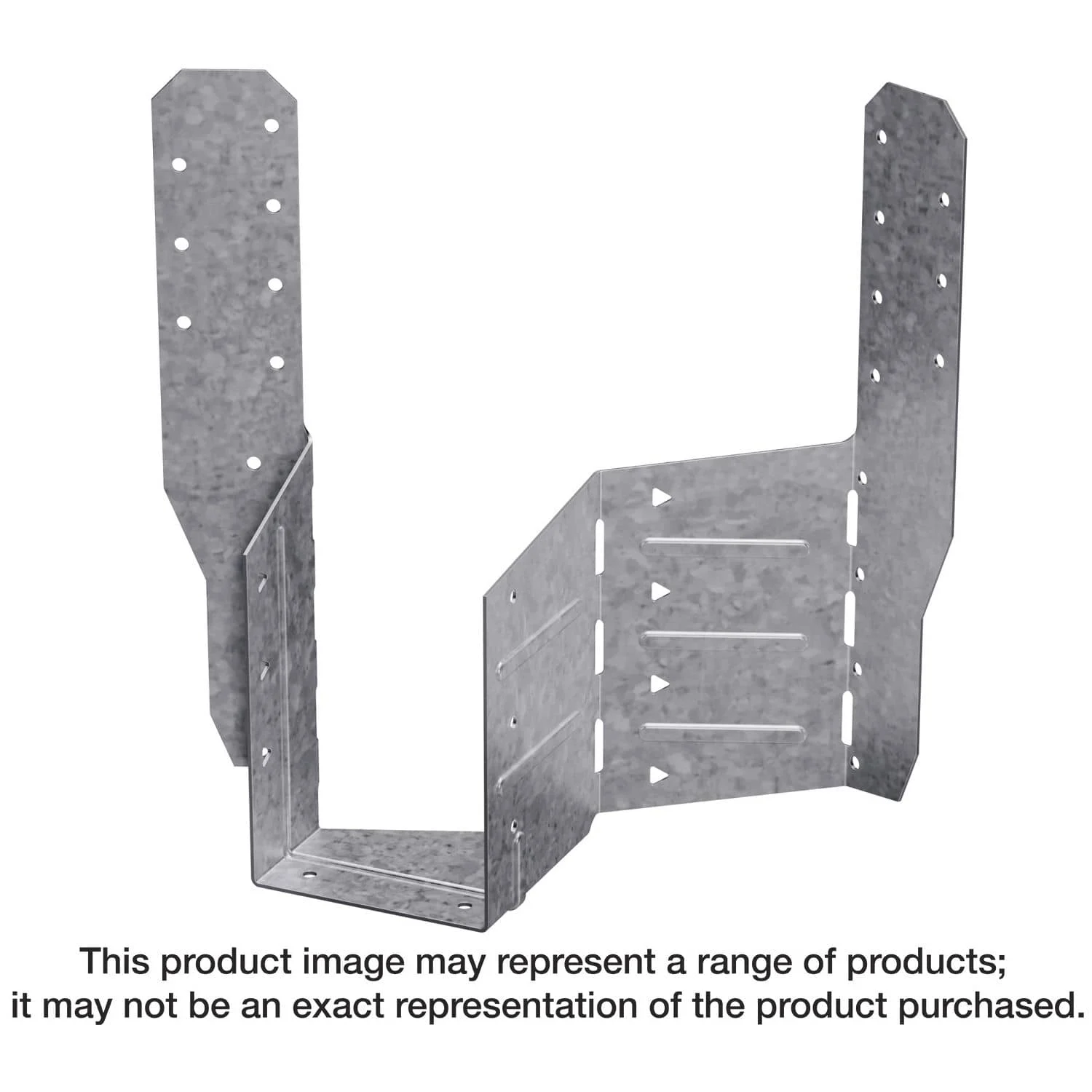

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22-1/2° right or left, the THASR/L hangers can be field-skewed from 22-1/2° to 75°.

• Eliminates the need for special orders
• Replaces the former THASL418
• One acute side bend line to ease design and installation
• Joist fasteners are only required from one side for skews greater than 22-1/2°
• Rated for installation with either nails or Simpson Strong-Tie Strong-Drive SD Connector screws
• Minimum carried member: 4x truss
• Width: 3-5/8 in.
• Height: 22 in.
• Made from 16-gauge steel

Install With: (13-16) 0.148 in. x 3 in. nails OR (13-16) #9 x 2-1/2 in. Strong-Drive SD Connector screws
