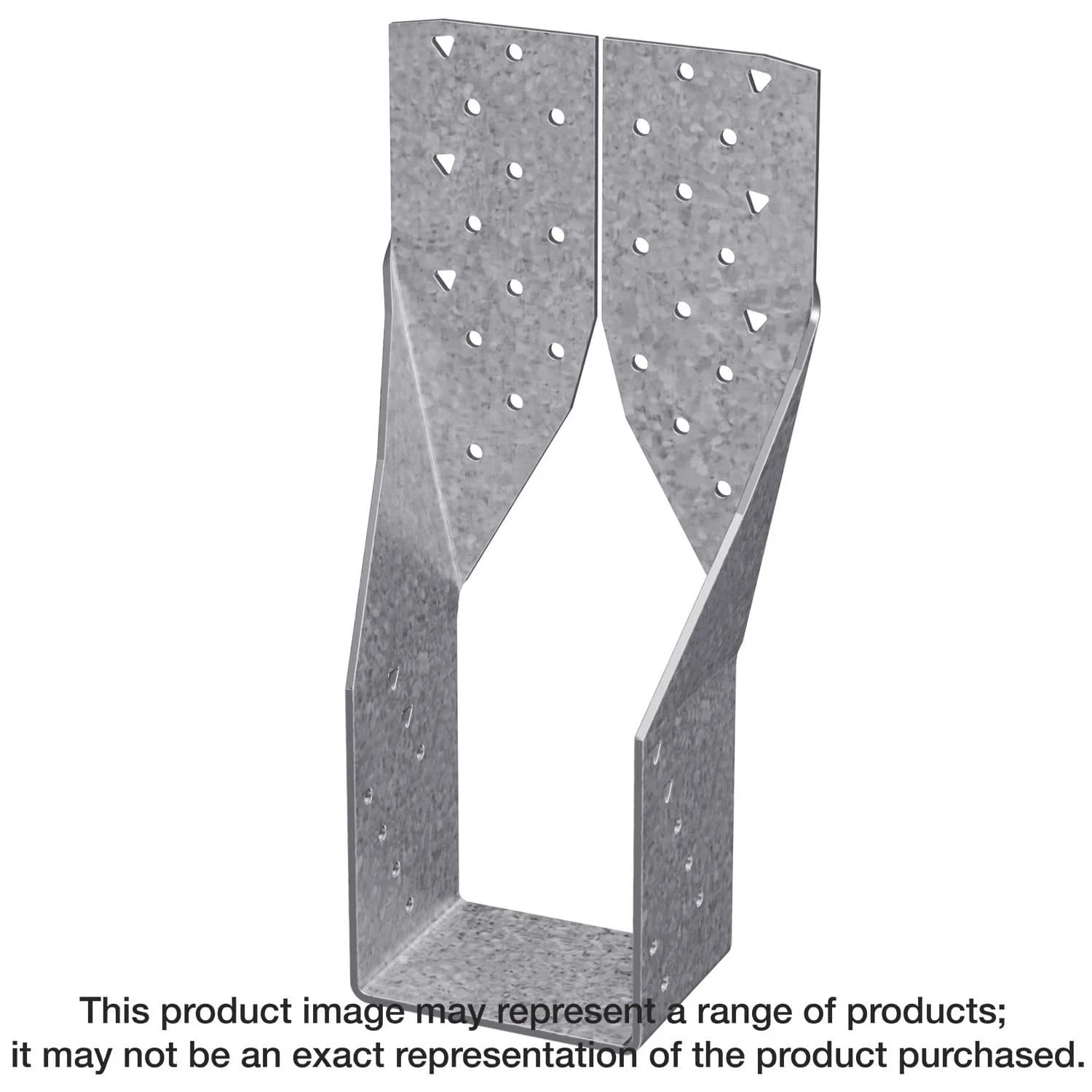

Simpson Strong-Tie THGQ3-SDS4.5 THGQ 4-15/16-in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws

• Can be installed filling round holes only, or filling round and triangle holes for maximum values
• Seat width: 4-15/16 in.
• Height: 16 in.
• Made from 7-gauge steel
• Galvanized (G90) for extra corrosion resistance

A lower-cost alternative to bolted hangers, the THGQ hangers for multi-ply girder trusses use Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation compared to bolts. The Strong-Drive SDS Heavy-Duty Connector screws help transfer the load between the plies of the supporting girder when they penetrate all plies. THGQ models offer minimum and optional maximum fastener quantities to accommodate varying design needs.

• Can be installed filling round holes only, or filling round and triangle holes for maximum values
• Seat width: 4-15/16 in.
• Height: 16 in.
• Made from 7-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
