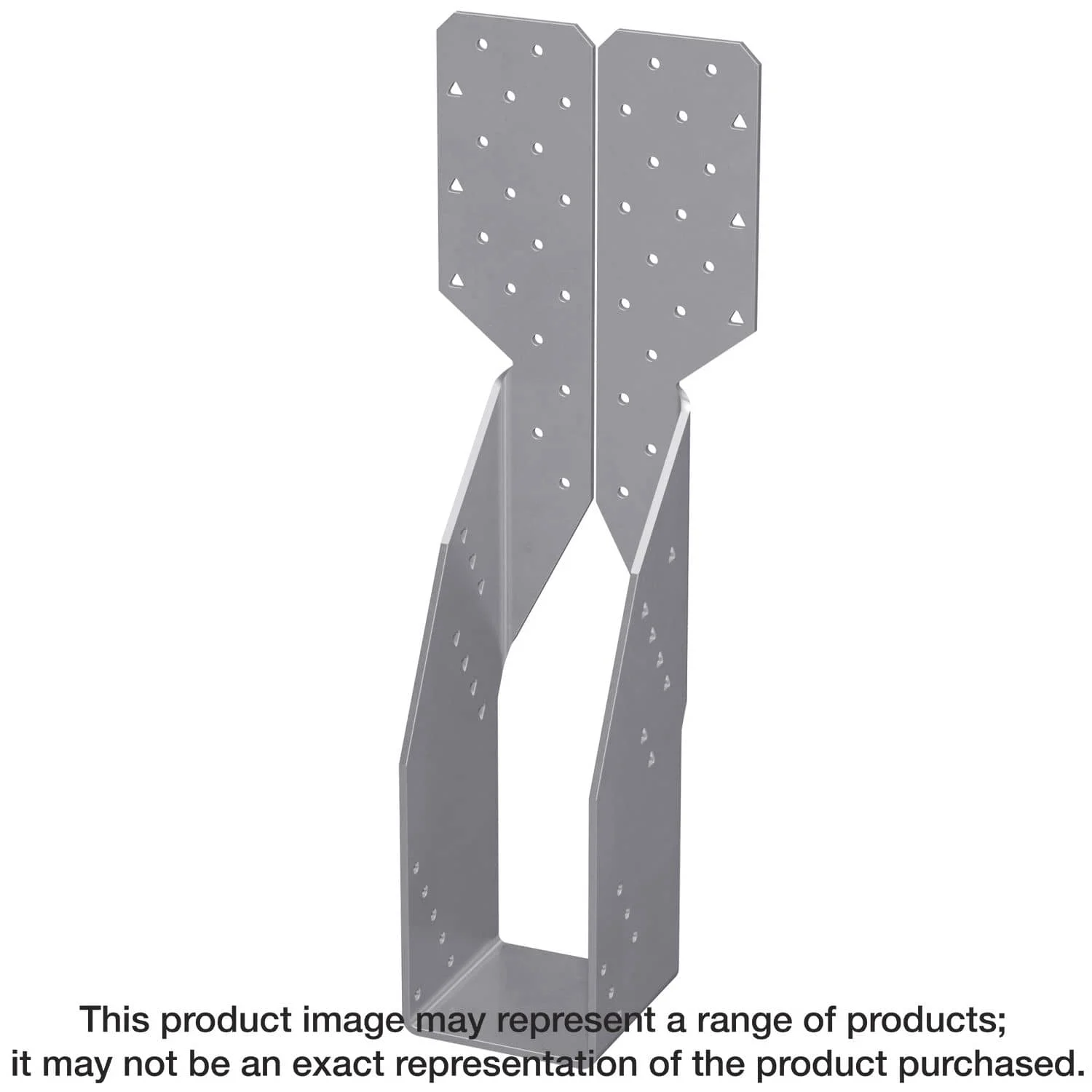

Simpson Strong-Tie THGQH5.50-SDS THGQH 5-1/2-in. Heavy-Duty Girder Truss Hanger with Strong-Drive SDS Screws

• Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
• Increased allowable loads available when wider vertical web is used
• Various models may be skewed 45°
• Seat width: 5-1/2 in.
• Height: 25 in.
• Made from 3-gauge steel
• Simpson Strong-Tie gray paint finish

The THGQH is a heavy hanger designed for a girder truss or a structural composite lumber beam attached to a girder truss. A lower-cost alternative to bolted hangers, the THGQH uses Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation. The THGQH offers minimum and maximum fastener quantities to accommodate varying design needs.

• Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
• Increased allowable loads available when wider vertical web is used
• Various models may be skewed 45°
• Seat width: 5-1/2 in.
• Height: 25 in.
• Made from 3-gauge steel
• Simpson Strong-Tie gray paint finish

Install With: Install with 1/4 in. x 4-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included)
