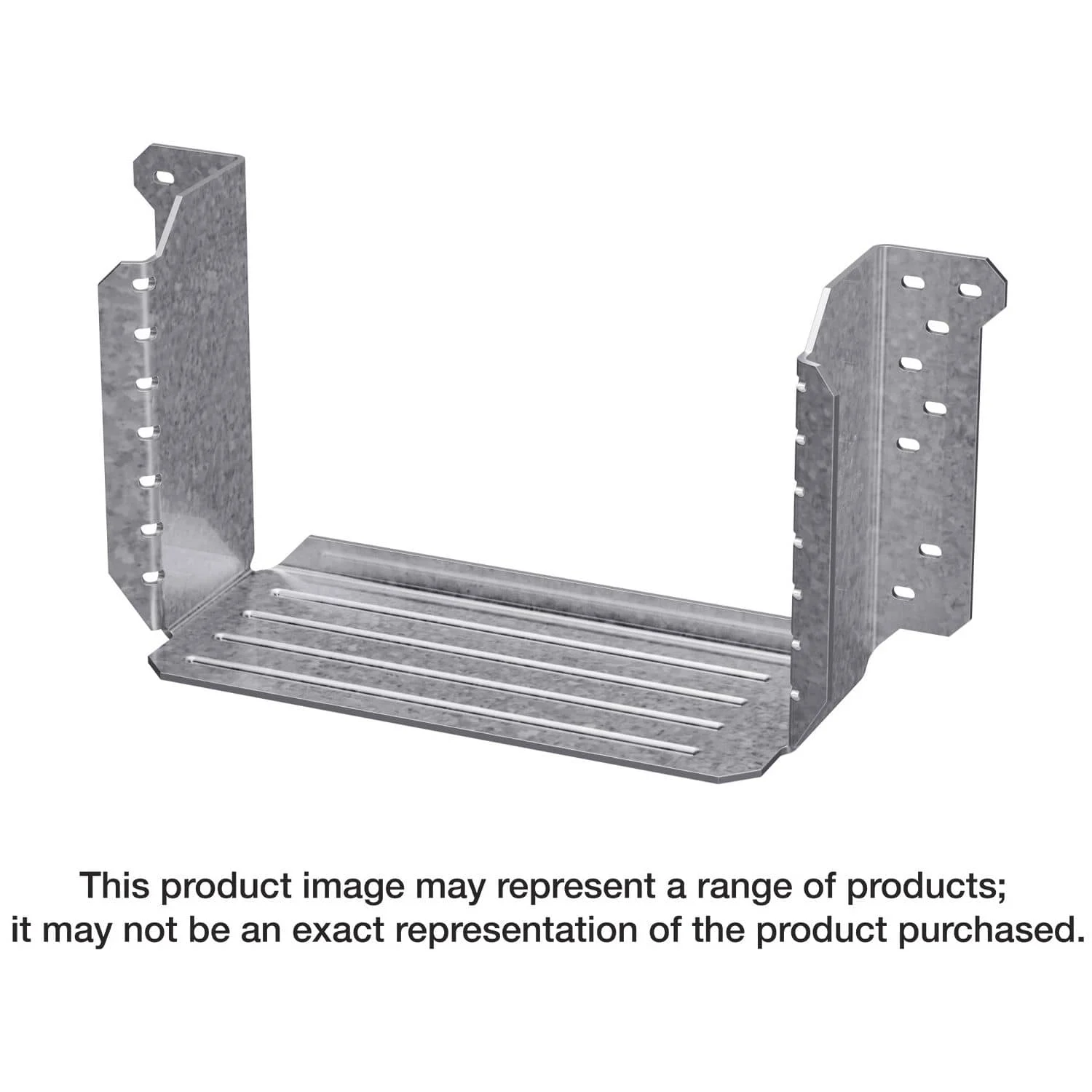

Simpson Strong-Tie THJU26 THJU 5-1/8-in. Galvanized Truss Hip/Jack Hanger

• The THJU hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance
• The U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67-1/2°) as well as various single and 2-ply hip/jack combinations
• THJU26 is sized for the standard hip/jack combination with a 45° left or right-hand hip
• Can be installed before or after the hip and jack
• Engineer trusted and contractor proven — you can trust the quality of Simpson Strong-Tie
• Seat width: 5-1/8 in.
• Height: 5-3/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors.

• The THJU hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance
• The U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67-1/2°) as well as various single and 2-ply hip/jack combinations
• THJU26 is sized for the standard hip/jack combination with a 45° left or right-hand hip
• Can be installed before or after the hip and jack
• Engineer trusted and contractor proven — you can trust the quality of Simpson Strong-Tie
• Seat width: 5-1/8 in.
• Height: 5-3/8 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Install With: Install with 10d common nails
