- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Seat width: 3-9/16 in.
- Nominal joist size: 4×12
- Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
- Simpson Strong-Tie gray paint

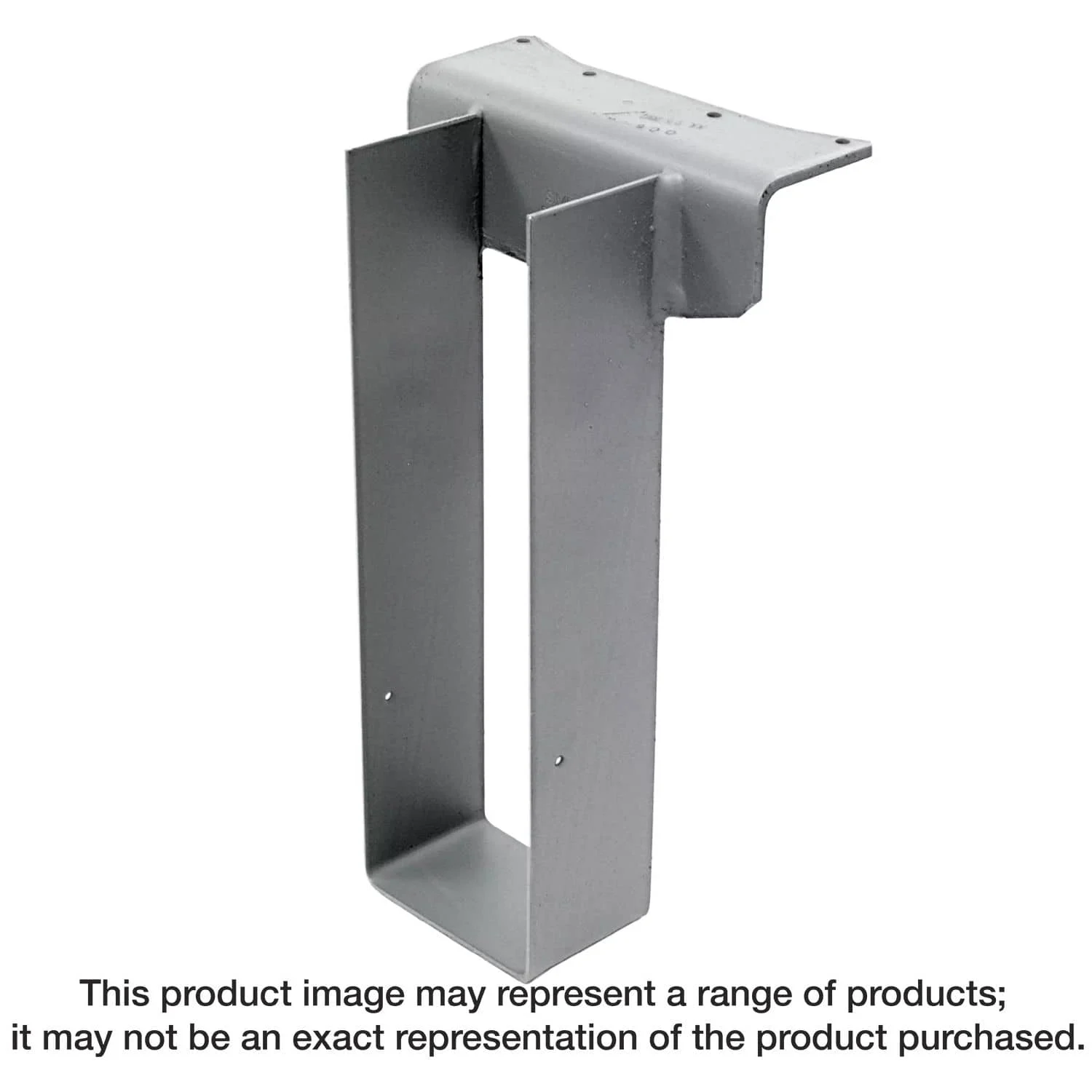

The WP is designed to support joists on purlins or beams and may be used for wood-to-wood or wood-to-steel applications. This top-flange hanger offers exceptional flexibility and versatility with the ability to be skewed up to 84° and/or sloped to a maximum of 45°. The WP is an economical choice with a low installed cost requiring a small number of nails for maximum downloads.
- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Seat width: 3-9/16 in.
- Nominal joist size: 4×12
- Top flange made from 7-gauge steel; stirrup made from 12-gauge steel
- Simpson Strong-Tie gray paint
