Simpson Strong-Tie WT8-R50 Wedge Tie for 2x Formboard, 8-in. Thick Walls, 50-Pack

• Designed for low foundation wall applications
• 5/8-in. wide formed “V” design for rigidity allows accurate form spacing and support
• Two W1 wedges required for each tie (sold separately)
• Not recommended for wall pours greater than 4 ft. high
• For 8-in. thick walls
• Use with nominal 2x formboard
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 50

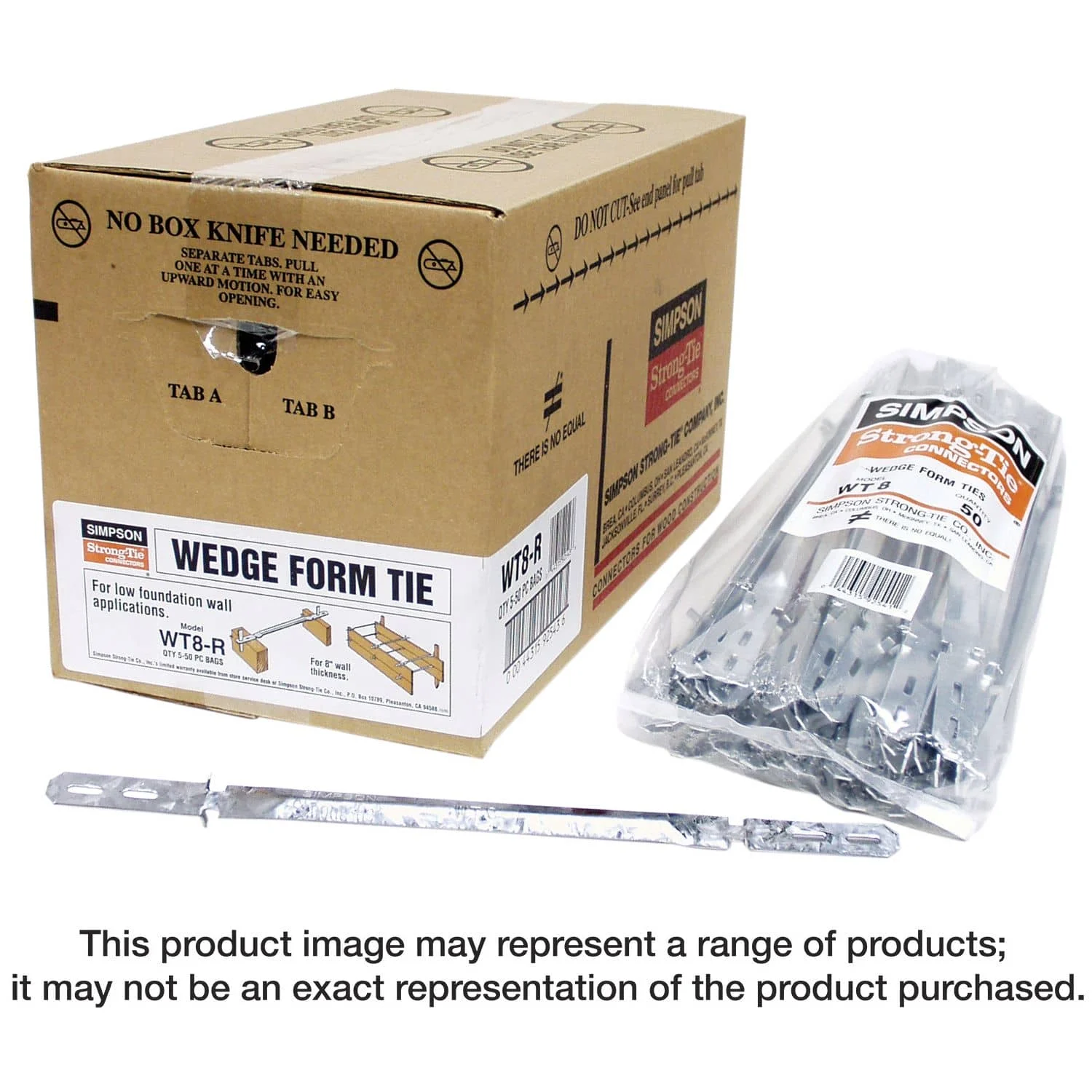

The Simpson Strong-Tie wedge tie (WT) is a form tie that secures concrete forms in place while the concrete is poured. It easily installs between form boards and accurately spaces the forms. Several models are available for varying wall thickness and types of form boards.

• Designed for low foundation wall applications
• 5/8-in. wide formed “V” design for rigidity allows accurate form spacing and support
• Two W1 wedges required for each tie (sold separately)
• Not recommended for wall pours greater than 4 ft. high
• For 8-in. thick walls
• Use with nominal 2x formboard
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 50

Install With: Two W1 wedges required for each tie (sold separately)
