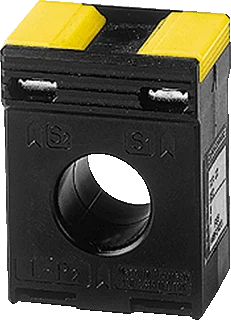

Socomec Current Transformer 100/5A | 192T2010

Current measuring transformer Socomec, primary measuring current 100A, secondary nominal 5A, secondary (measuring), apparent power 1.5VA, version through hole current transformer, accuracy class 0. Snap fixing, with copper rail and opening diameter 21mm.

Specifications

Primary rated current (A) : 100
Secondary rated apparent power (VA) : 1.5
Secondary rated current (A) : 5
Number of phases : 1
Secondary connection : Screw connection
Output voltage : No
Over current limiting factor : FS 5
Accuracy class : 0.5
Calibrated : No
Number of primary inputs : 1
Height opening (mm) : 21 mm to 21 mm
Model : Through-feed current converter
Width opening (mm) : 21 mm to 21 mm
With shock protection : No
Opening diameter (mm) : 21
Snap mounting : Yes
With copper rail : Yes
