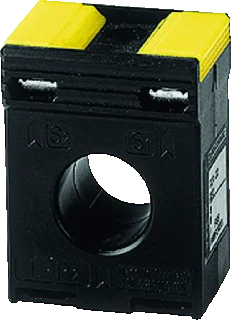

Socomec Current Transformer 250/5A | 192T2325

Socomec cable-through or bar current transformers. They deliver to the secondary, a standard voltage proportional to primary current. They also adapt to the device’s rating. The current transformers have removable terminal covers and double terminals that allow the secondary to be used without risk. These features and benefits are listed below. Adapted currency class: 0.2 s to 0.5 s to 1 s or 3. Choices of cable-through or bar.
There are many ratings and dimensions. 3 phase models available.
Mounting is quick and simple

Specifications

Primary rated current (A) : 250
Secondary rated apparent power (VA) : 5
Secondary rated current (A) : 5
Number of phases : 1
Secondary connection : Screw connection
Output voltage : No
Over current limiting factor : FS 5
Accuracy class : 0.5
Calibrated : No
Number of primary inputs : 1
Height opening (mm) : 30 mm to 30 mm
Model : Through-feed current converter
Width opening (mm) : 30 mm to 30 mm
With shock protection : No
Opening diameter (mm) : 26
Snap mounting : Yes
With copper rail : No
