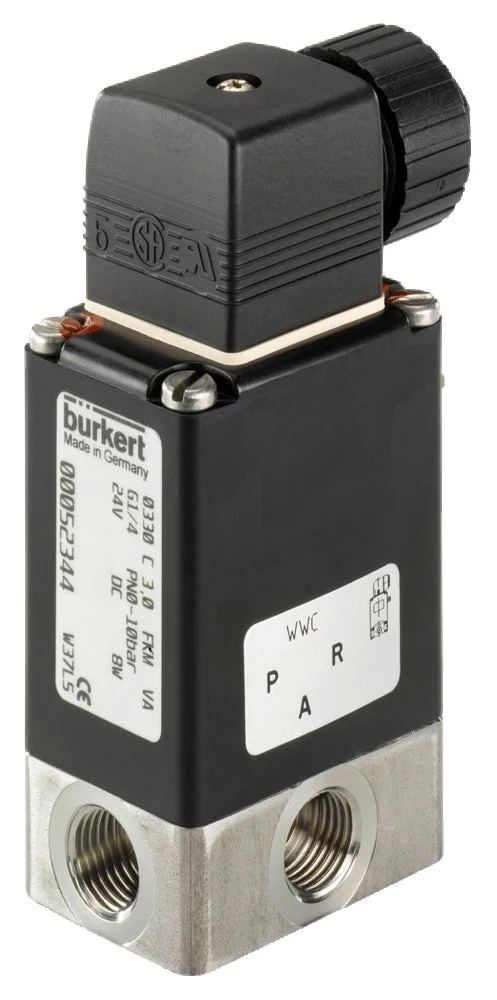

Bürkert direct operating 3/2-way solenoid valve with G1/4” inner threads and 24V UC (alternating or direct current) coil. The valve has a stainless steel housing with FKM sealing and an orifice size of 3 mm. The circuit function of the solenoid valve is mixing, which means that the valve connects one of the 2 inlet ports to the outlet port, depending on the valve’s state. Suitable for systems with a differential pressure of 0-6 bar and a maximum temperature of 90°C. The valve has a Kv-value of 0.18 m3/h, this translates to a flow rate of 3 l/min at the differential pressure of 1 bar (for water). This model is media separated and can therefore be used for slightly contaminated and aggressive media. The stainless steel housing is very durable, strong and resistant to a wide range of chemicals with the exception of chloride solutions. The FKM (fluorine rubber or viton) sealing has excellent chemical properties, is suited for most oils and solvents but it cannot handle hot water or steam. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. Manual override feature can be used to commission the system. The valve is certified for ATEX Ex-Zone 1, so it can be used in potentially explosive environments requiring this certification. The valve has an IP65 rating if properly connected.
Important advantages
- ATEX certified up to Ex-Zone 1
- Can be used with slightly contaminated or aggressive media thanks to the media separated design
- As standard, it is equipped with a robust manual override for easy comissioning and in case of a power outage
- Good protection against the environment thanks to the IP65 rating
- Bürkert design: proven reliability & durability
0330 series
The Bürkert solenoid valve type 0330 is a direct-operated solenoid valve, meaning no pressure difference is needed to open the valve. This design is media separated, which allows for complete isolation of your fluid from the valve’s working parts. This makes it a good solution for aggressive or slightly contaminated media. The valves can be delivered with DN 2 up to DN 5 or with a flange. The pressure range depends on the voltage, but has a maximum of 16 bar. The valve has a maintenance free pivot armature design instead of the common linear translating plunger. The valve is available in IP65 or IP67 protection. The valve has few moving parts, allowing for a long service life due to minimal wear on valve components. The 2/2-way and the 3/2-way versions are specifically designed for applications such as mixing, diversion and universal direction of media. The valves are available with different housing materials, such as brass, stainless steel, PP or PVDF in combination with different sealing materials. Finally, there are options for position feedback, bi-stable, vacuum variants, as well as ATEX explosion approved versions.
Please note: this product is made to order and can therefore unfortunately not be returned.
Specifications
Connection size : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Function : Mixing
Voltage : 24 V AC,24 V DC
Material : Stainless steel
Seal material : FKM (FPM)
Operation : Direct
Recommended for : Water,Sea water,Combustible gases,Lubricant,Fuel,Oil,Strong acids and bases,Dilute acids and bases,Carbon dioxide,Air
Max pressure (bar) : 6
Features : Media separation,Manual override,Energy efficient (under 9 VA)
Approval : Atex Zone 1,Atex Zone 21,Atex Zone 2,Atex Zone 22
Material quality : Stainless steel 316 (1.4401)
Valve bore (mm) : 3
Kv value [m3/h] (m³/h) : 0.18
Max temperature (°C) : 90
Electrical connection : Moulded cable
Degree of protection (IP) : IP65
Nominal power (W) : 3
Valve ports/positions : 3/2 way
Voltage-type : AC/DC
Duty cycle : 100%
Frequency : 50/60 Hz
Max. ambient temp. (°C) : 55
Peak power (W) : 40
Explosion safety : Ex-Zone 1
