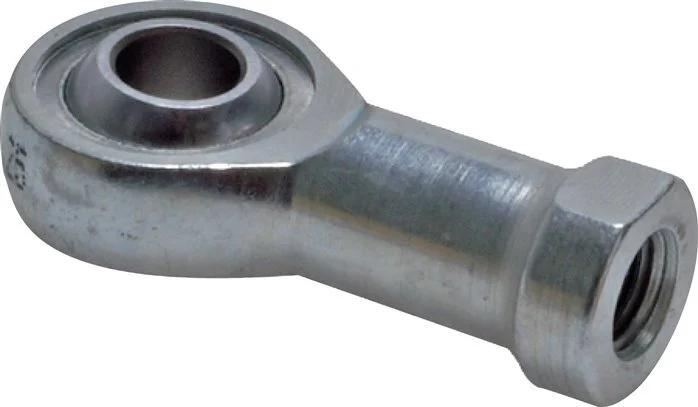

This stainless steel 304 (1.4301) spherical rod-end with M12 female thread is used to mount pneumatic cylinders. The hole diameter of the ball is 12 mm. Mount at the end of male threaded piston rods. The rod-end is suitable for linear or arcing paths and also allows small lateral angular misalignments. Including grease nipple for good lubrication over the lifetime. I.a. compatible with the following cylinders: 40 mm round cylinders.
Specifications
Material : Stainless steel 304 (1.4301)
Cylinder ISO standard : Round 2-63mm
Rod thread : M12
Pin diameter (mm) : 12
Cyl-diameter Round 32-63 : 40 mm
