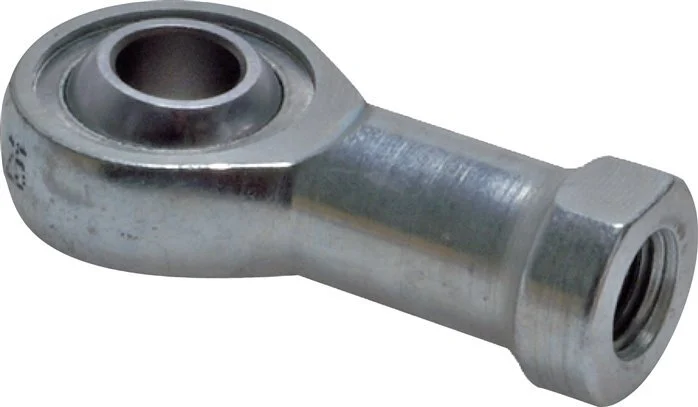

Spherical Rod-end M16 Female Zinc plated steel

This zinc plated steel spherical rod-end with M16 female thread is used to mount pneumatic cylinders. The hole diameter of the ball is 16 mm. Mount at the end of male threaded piston rods. The rod-end is suitable for linear or arcing paths and also allows small lateral angular misalignments. Including grease nipple for good lubrication over the lifetime. I.a. compatible with the following cylinders: 50 mm and 63 mm round cylinders.

Specifications

Material : Zinc plated steel
Cylinder ISO standard : Round 2-63mm
Rod thread : M16
Pin diameter (mm) : 16
Cyl-diameter Round 32-63 : 50 mm,63 mm
