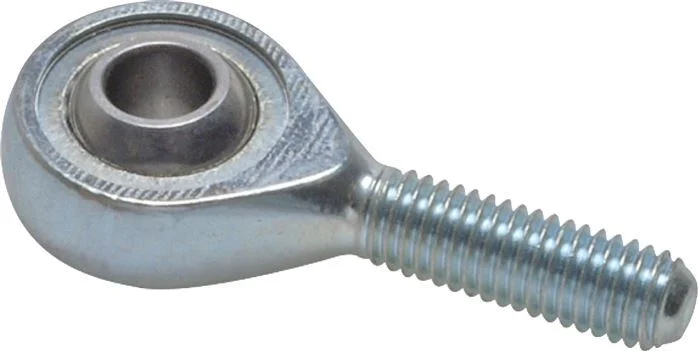

This zinc plated steel spherical rod-end with M8 male thread is used to mount pneumatic cylinders. The hole diameter of the ball is 8 mm. Mount at the end of female threaded piston rods. The rod-end is suitable for linear or arcing paths and also allows small lateral angular misalignments. Including grease nipple for good lubrication over the lifetime. I.a. compatible with the following cylinders: (ISO 21287).
Specifications
Material : Zinc plated steel
Cylinder ISO standard : ISO 21287
Rod thread : M8
Pin diameter (mm) : 8
Cyl-diameter ISO 21287 : 32 mm,40 mm
