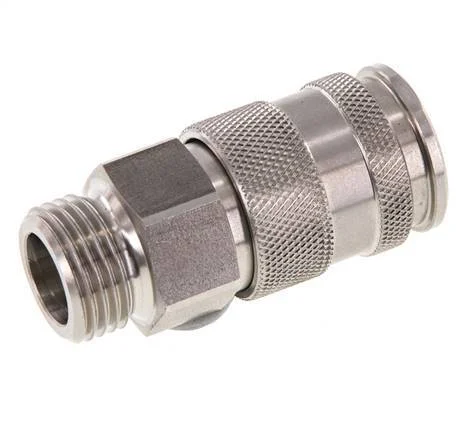

Stainless steel DN 10 Air Coupling Socket G 1/2 inch Male Double Shut-Off

Stainless steel DN 10 air coupling socket with G 1/2 inch male threads. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

The G 1/2 inch male threads allow for it to be threaded onto a matching female threaded part. This coupling is suitable for vacuum applications. The socket has a double sided shut-off design. They can be used with normal plugs and with ‘double-sided shut off’ plugs. When double-sided shut off plugs are disconnected, they shut off flow in both directions. The operating pressure range is 0 to 35 bar. The socket is suitable for temperatures between -15 to 200°C. The rated flow rate is 2100 l/min. The seal material is FPM/FKM. The sleeve material is stainless steel. The housing material is stainless steel 303 (1.4305).

This product is compatible with: Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

• The G 1/2 inch male threads allow for it to be threaded onto a matching female threaded part.
• Compatible with a wide range of air couplings with the same standard profile design.
• The large 10 mm diameter allows for a large flow rate and low pressure drop.
• It can be used for vacuum applications.
• The socket has a double sided shut-off design, which allows for both the system up and down stream to remain pressurized when disconnected.

CLS10-M series

Our air coupler offering ranges from DN 2.7 – 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.

Specifications

Connection size : 1/2 inch
Nominal diameter (mm) : 10
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 35
Min temperature (°C) : -15
Max temperature (°C) : 200
Coupling features : Vacuum,Double sided shut-off
Quality of material : Stainless steel 303 (1.4305)
Min pressure (bar) : 0
Compatible models : Rectus (27, 41, 1700, 1727),TEMA (1700),CEJN (410)
Shape : Coupling (female)
Max flow rate (l/min) : 2100
Sleeve material : Stainless steel
With dust cap : No
