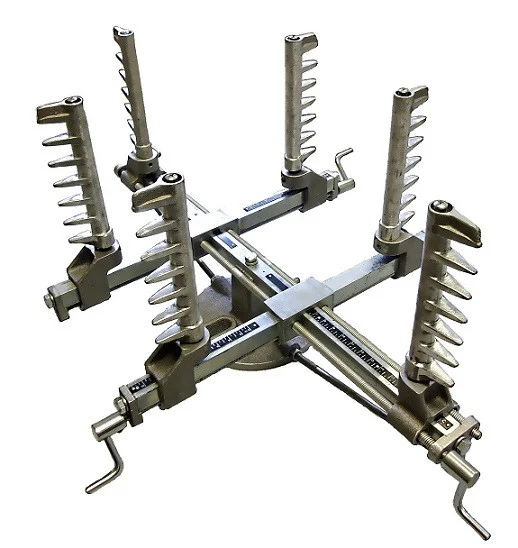

Standar Duty Coil Winding Heads 3-Phase Group Winding Head

Standar Duty Coil Winding Heads 3-Phase Group Winding Head

Advance design for three phase motors from fractional HP to over 300 HP.
Four permanently mounted cranks adjust winding arms in pairs simultaneously.
Easy to read scales for each set of winding arms assures accuracy. Graduated scales read 1/4″ increments. Winding arms are rigid under load. Winds six identical coils. Can be used for continuity phase winding. Mounts easily on Crown coil winding drives or any turning device with an 18″ swing. Can be easily mounted by one person as head weights only 27 lbs. Winding fingers revolve from their locked position for easy coil removal.
