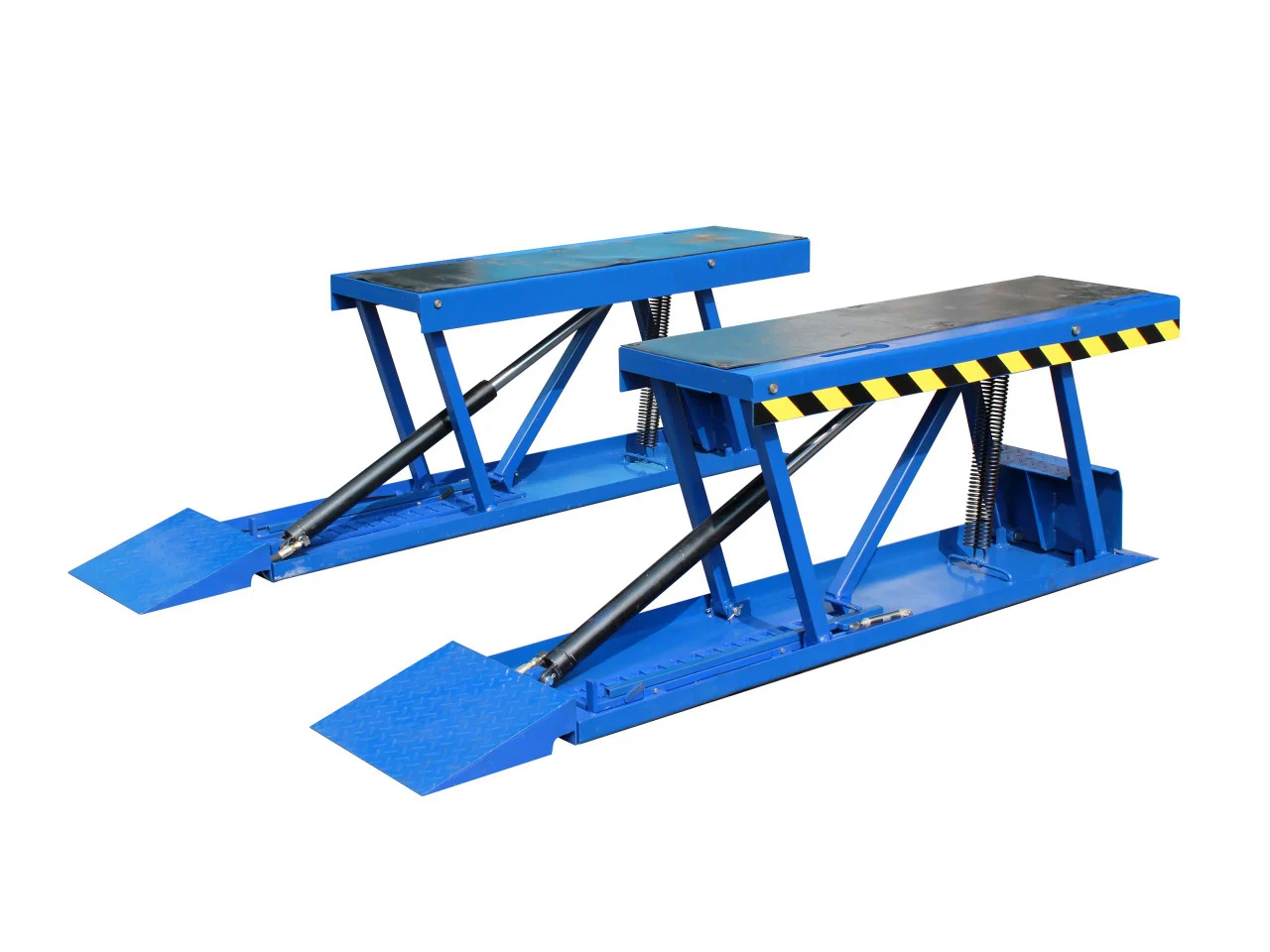

Low Rise Pit Lift
- 6,000 lbs Capacity
- Floor Mounted Design
- Low Driver Over Height
- Single Point Pneumatic Lock Release
- Pit Lift to Extend Quick Lube Services
- Rubber Spacer Blocks Included
- Optional PL6K-ARMKIT for Frame Lifting
- Optional PL6K-HEIGHT-ADAPTER Extensions for Frame Lifting
Specifications
| Lift Model | PL6K |
| Capacity | 6,600 lbs |
| Overall Length | 83-1/4″ |
| Overall Width | 66″ |
| Lifting Height | 28-1/2″ |
| Min. Pad Height | 4-1/4″ |
| Lifting Height with Adapters | 30″ |
| Width Between Runways | 0 to 29-1/2″ |
| Width of Runways | 18″ |
| Lifting Speed | 40S |
| Pad Length | 53″ |
| Ship Weight | 770 lbs |
| Power | 115V – 15 Amp – 1PH |
