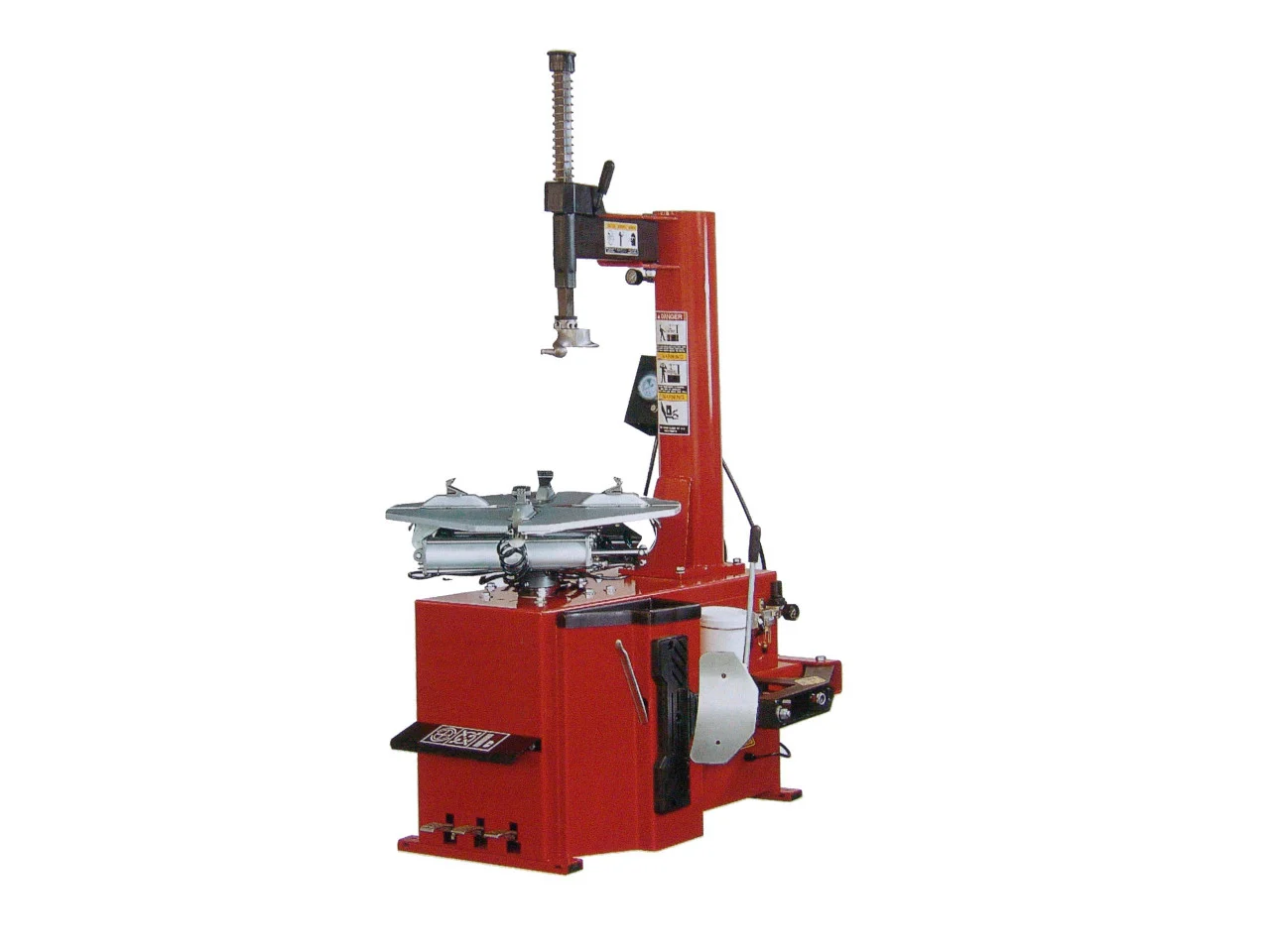

Tire Changer
- Swing arm design
- Handles tires to 38″ diameter and rim widths to 12″
- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- Conveniently located and powerful bead breaker
- No scratching. Machine never contacts rim eliminating accidental damage
- Large diameter hex mount / demount shaft for extra rigidity
- Pressure limiter, water separator and oiler are standard
Specifications
| Tire Changer Model | TC-530 |
| Max Wheel Diameter | 38” |
| Wheel Width | 3” – 12” |
| Inside – Rim Clamp Range | 12” – 23” |
| Outside – Rim Clamp Range | 10” – 20” |
| Power | 110V – 15 Amp – 1PH |
| Working Pressure | 125 psi |
| Ship Weight | 560 lbs |
