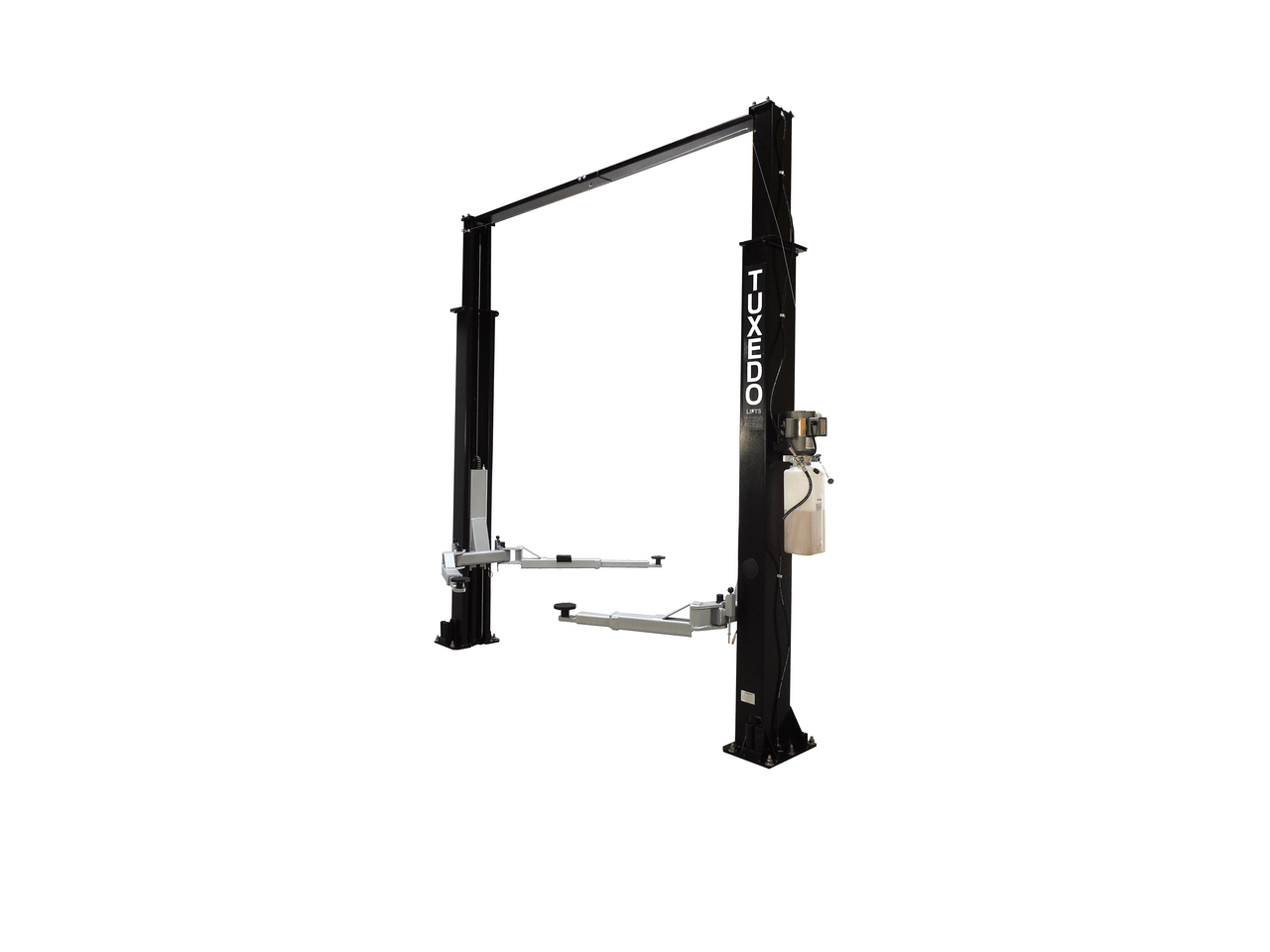

Tuxedo, Two Post Clear Floor
- 9,000 lbs capacity
- ASymmetric Arms
- Chain Drive Cylinders
- Dual Point Lock Release
- Auto Arm Restraint System
- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard
Specifications
| Lift Model | TP9KAC-TUX | |
| Capacity | 9,000 lbs. | |
| Height Overall | 142-11/16″ | |
| Width Overall w/ Power Unit | 141″ | |
| Max Lift Height | 72″ | |
| Width Between Columns | 110-3/8″ | |
| Min. Pad Height | 4″ | |
| Drive Thru Clearance | 93-11/16″ | |
| Lifting Speed | 50S | |
| Asymmetric / Symmetric | Asymmetric | |
| Clear Floor / Floor Plate | Clear Floor | |
| Short Arm Reach – min/max | 29″-41″ | |
| Long Arm Reach – min/max | 37″-57″ | |
| Narrow Bay Setting | NA | |
| Max Load Per Arm | 2,250 lbs. | |
| Ship Weight | 1,390 lbs | |
| Power | 220V – 20 AMP – 1PH |
