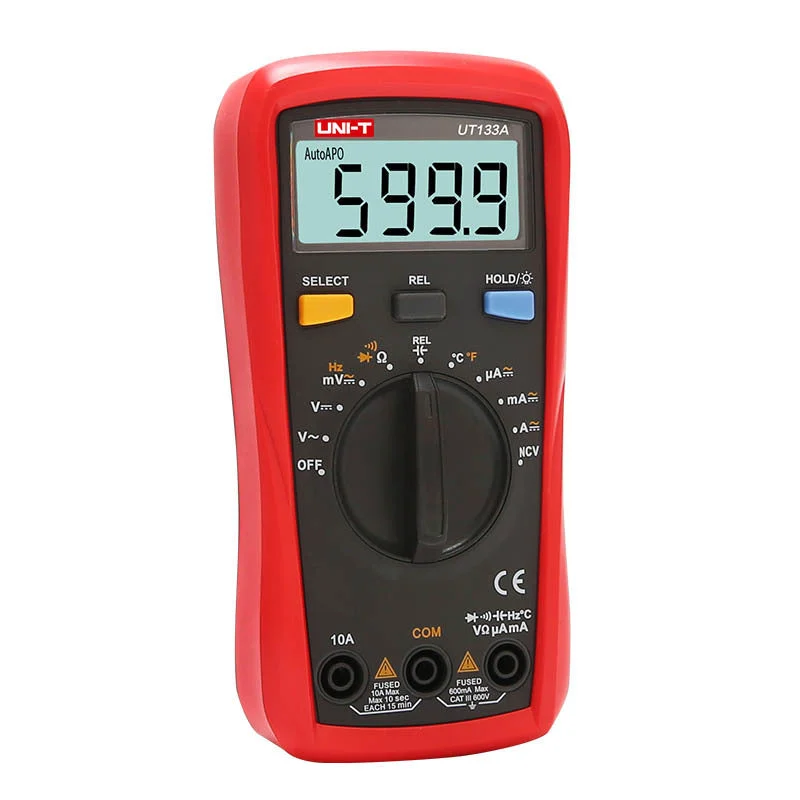

UNI-T UT133A Multimeter

Compact and well priced, the UNI-T UT133A is a great all round multimeter. It measures DC and AC currents and voltages. It can also measure resistance and capacity, has a diode and continuity tester and an NCV function. This model has a 6000 count display that is more than enough for most basic applications. It is equipped with an over-current and over-voltage alarm that sounds an alarm noise when the current or the voltage is too high. An automatic standby mode saves battery life. This can be deactivated though. Furthermore it is capable of surviving a 2 meter fall.

Pros:

• Quick and accurate capacitance measuring
• Ideal for basic measurements

Cons:

• AC precision is limited
• Missing some more advanced features

Specifications

Indication : Digital
Our choice for : Budget multimeter
Measuring range selection : Automatic
Max. voltage measuring range, AC (V) : 600
Lowest resolution, AC voltage : 0.1 mV
Max. voltage measuring range, DC (V) : 600
Lowest resolution, DC voltage : 0.1 mV
Max. current measuring range, AC (A) : 10
Lowest resolution, AC current : 0.1 µA
Max. current measuring range, DC (A) : 10
Lowest resolution, DC current : 0.1 µA
Max. resistance measuring range (MOhm) : 60
Lowest resolution, resistance : 0.1 Ohm
Max. temperature measuring range (°C) : 1000
Capacitance measurement : Yes
Max. capacitance measuring range (µF) : 9999
Lowest resolution, capacitance : 0.00001 µF
Frequency measurement : Yes
Max. frequency measuring range (kHz) : 1000
Lowest resolution, frequency : 0.01 Hz
Max. voltage measuring circuit category (V) : 600
Temperature measurement : Yes
Temperature measurement RTD : No
Temperature measurement TC : No
Data hold : No
Max. value storage : No
Min. value storage : No
Multiple display : No
Resistance test/diode test : Yes
Scaling bar graph lineair : No
Scaling bar graph logarithmic : No
True RMS measurement : No
With display backlight : Yes
Duty cycle measurements : No
Measured value memory : No
Interface : No
Bluetooth interface : No
Measuring circuit category : CAT III
Milliohm measurement with 4 wire technique (Kelvin connection) : No
