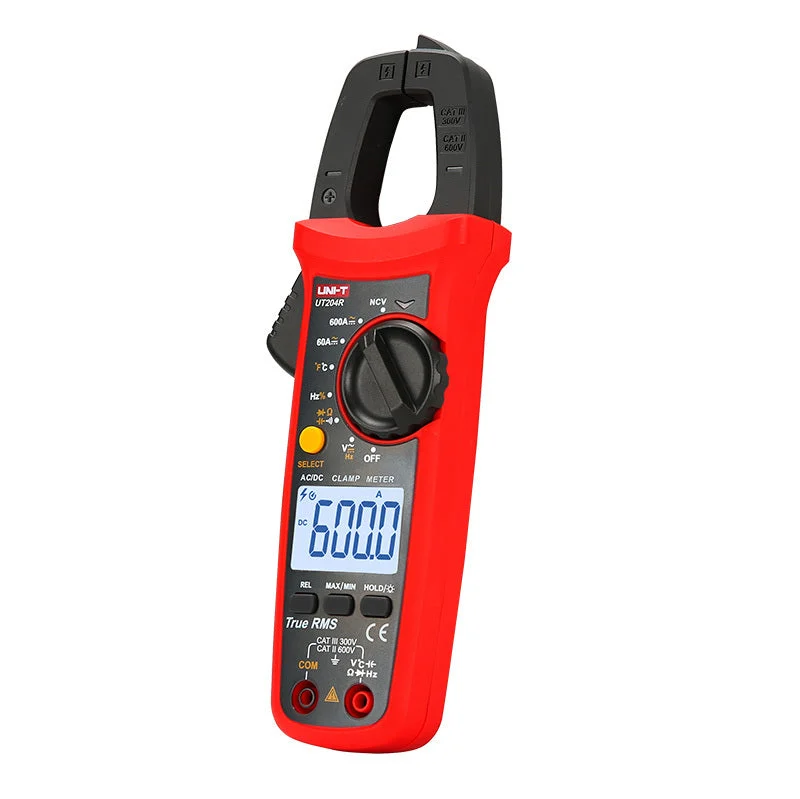

UNI-T UT204R Clamp Meter

A True-RMS current clamp with an integrated multimeter for measuring AC and DC current up to 600A. A 6000 count display with backlight makes it a precise and easy to read meter. A wide variety of measurements can be performed with the provided test wires and thermocouple, including AC and DC voltage, resistance, capacity, frequency, and temperature. The NCV function allows detection of wires with a voltage across it. AutoRange, which automatically selects the recommended measuring range, is included with the UT204R. The measurement range can also be manually selected.

The UT204R comes with a carrying bag, test cables, and a type K thermocouple.

Pros:

• True-RMS can measure sinusoidal and non-sinusoidal AC waveforms.
• High current measurement

Specifications

Indication : Digital
Measuring range selection : Automatic
Current measuring range, DC (A) : 0.01 A to 600 A
Current measuring range, AC (A) : 0.01 A to 600 A
Type of current : AC/DC
Voltage measurement, AC : Yes
Voltage measurement, DC : Yes
Resistance measuring range : Yes
Temperature measurement : Yes
Capacitance measurement : Yes
Frequency measurement : Yes
Power measuring : No
Leakage current measuring : No
Harmonics measurement : No
Measurement in cables with for- and back conductor : No
Jaw opening (mm) : 28
Version as adapter to connect to multi meter : No
Interface : No
Measuring circuit category : CAT III
Max. voltage measuring circuit category (V) : 300
Continuity test : Yes
Analogue bar graph display : No
Multiple display : No
True RMS measurement : Yes
With display backlight : Yes
