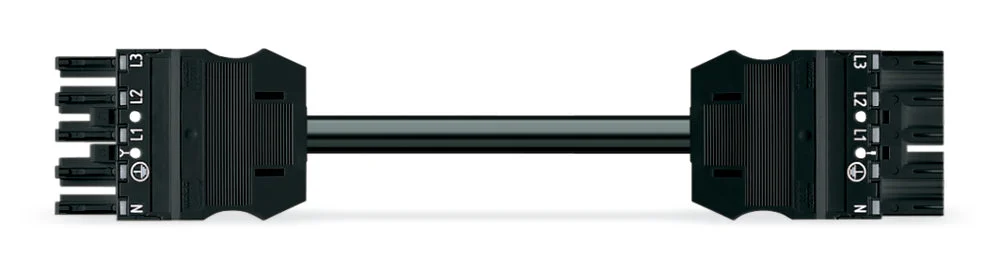

Winsta midi. Pre-assembled interconnecting cable, cca, socket/plug, 5-pole, cod. A, h05z1z1-f 5g 2.5 mm², 8 m, 2,50 mm², black.
Specifications
Rated voltage (V) : 400
Rated current (A) : 20
Number of poles : 5
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Bus
Type side 2 : Plug
Conductor end treatment : Ultrasonic compressed wire ends
Total length (mm) : 8000
Mechanical coding : Yes
Color coding/contact insert : Black
Color housing : Black
Cable type : H05Z1Z1-F
Cable diameter (mm) : 11.2 mm to 13.9 mm
Color outer sheath : Black
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 85
Halogen free : Yes
Fire load (kWh) : 0.299
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 6
Reaction-to-fire class according to EN 13501-6 : Cca
