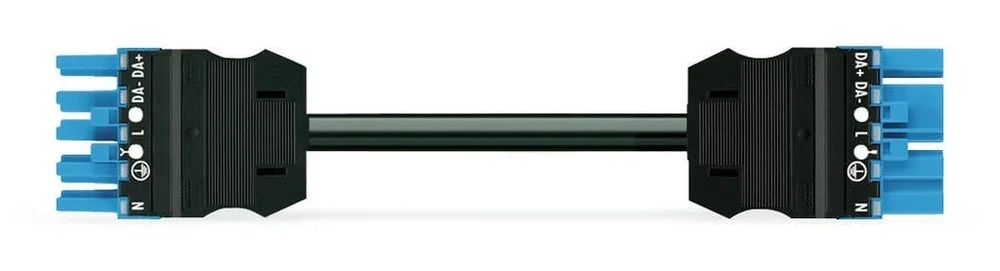

Winsta midi. Pre-assembled interconnecting cable, b2ca, socket/plug, 5-pole, cod. I, h05z1z1-f 5g 1.5 mm², 3 m, 1,50 mm², blue.
Specifications
Rated voltage (V) : 400
Rated current (A) : 16
Number of poles : 5
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Bus
Type side 2 : Plug
Conductor end treatment : Ultrasonic compressed wire ends
Total length (mm) : 3000
Mechanical coding : Yes
Color coding/contact insert : Blue
Color housing : Black
Cable type : H05Z1Z1-F
Cable diameter (mm) : 9.3 mm to 11.6 mm
Color outer sheath : Black
Nominal cross section conductor (mm²) : 1.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 85
Halogen free : Yes
Fire load (kWh) : 0.336
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 6
Reaction-to-fire class according to EN 13501-6 : B2ca
