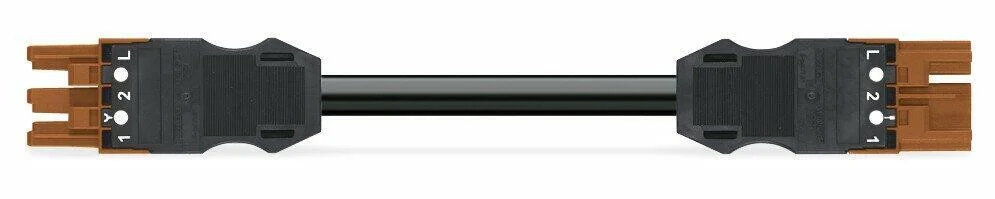

Wago Winsta Midi 771 patch cable inst.bare building installation, design side 1 mating plug (female), design side 2 plug, type made-up cable connection cable, halogen-free, total length 3000mm, sheath black, nominal conductor cross-section 1.5mm², coding/contact insert brown.
Specifications
Rated voltage (V) : 250
Rated current (A) : 16
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Bus
Type side 2 : Plug
Conductor end treatment : Ultrasonic compressed wire ends
Total length (mm) : 3000
Mechanical coding : Yes
Color coding/contact insert : Brown
Color housing : Black
Cable type : H05Z1Z1-F
Cable diameter (mm) : 7.4 mm to 9.4 mm
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 1.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 85
Halogen free : Yes
Fire load (kWh) : 24.691
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
