Wago Winsta Midi 771 patch cable inst.bare building installation, design side 1 plug, design side 2 free cable end, type of made-up cable other, halogen-free, total length 3000mm, sheath black, nominal conductor cross-section 2.5mm², coding/contact insert black, pole marking L. N. PE.
Specifications
Rated voltage (V) : 250
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Other
Type side 1 : Plug
Type side 2 : Free conductor end
Conductor end treatment : Ultrasonic compressed wire ends

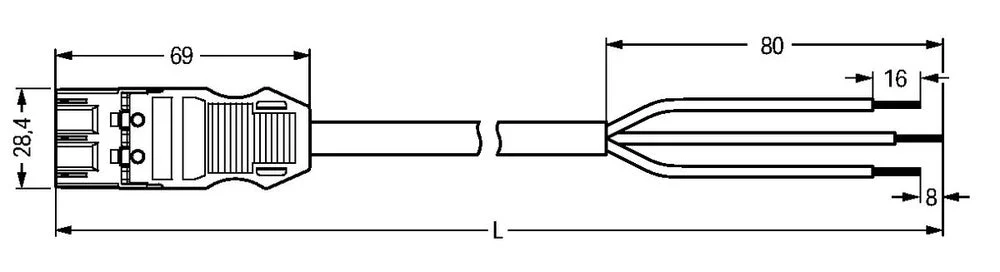

Total length (mm) : 3000
Mechanical coding : Yes
Color coding/contact insert : Black
Color housing : Black
Cable type : H05Z1Z1-F
Cable diameter (mm) : 9.2 mm to 11.4 mm
Dismantle length (mm) : 80
Strip length (mm) : 16
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 105
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 85
Halogen free : Yes
Fire load (kWh) : 24.86
Surface treatment contacts : Tinned
Pollution degree : 3
Continuity resistor (mOhm) : 1
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
