Product Features & specs :

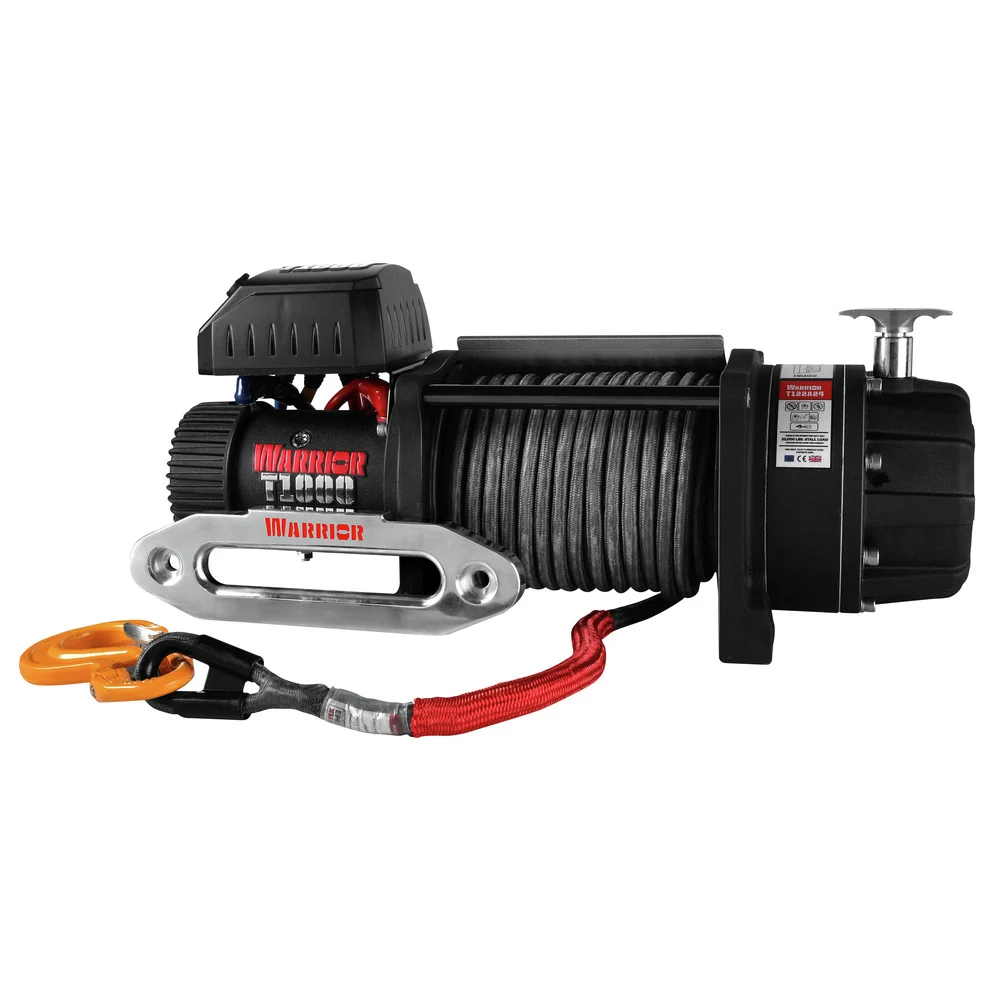

Warrior Winches T1000-100AE Elite Combat 10000 lbs. Capacity Winch with Synthetic Rope
Details
Built specifically for military use, able to withstand extreme climates and temps. Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments. The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesn’t solidify in extreme climates.
Features:
-
IP68 Rated Military Grade Winch and Control Box
-
Hardened 3-Stage planetary gears
-
Waterproof remote control with LED indicators
-
Corrosion and Chemical Resistant Powder Coat
-
High Temperature Lithium Grease that won’t solidify in extreme temperatures
-
Rated Line Pull: 10000 lbs. (4536 kg.); Motor at 12V: 4.6kW / 6.2 HP, at 24V: 6.5kW / 8.7HP; Gearing228:1; Drum Size – Dia x L: 63 mm x 217 mm (2.48 in. x 8.5 in.); Cable – Dia x L: 9.1 mm x 25 m (0.35 in. x 82 ft.); Dimensions: 574 mm x 16 mm x 259 mm (22.6 in. x 6.3 in. x 10.2 in.); Mounting Pattern: 254 mm x 114.3 mm (10 in. x 4.5 in.) 4-M10; Weight (kg) 37.5 kg. (82.7 lbs.)
-
Layer of Rope/Cable, Line Pull: lbs. (kg.), Rope on drum ft. (m): 1, 10000 (4536), 16.1 (4.9); 2, 7980 (3620), 36.4 (11.1); 3, 6640 (3012), 61 (18.6); 4, 5680 (2576), 82 (25)
-
Line Pull (lbs. / kg.), Line Speed 12V ft./min (m/min.), Line Speed 24V ft./min (m/min.), Amp Draw at 12V, Amp Draw at 24V: 0, 32.2 (9.8), 34.4 (10.5), 65, 45; 3000 (1361), 14.8 (4.5), 16.4 (5), 140, 85; 6000 (2722), 10.5 (3.2), 12.5 (3.8), 260, 140; 8000 (3629), 7.5 (2.3), 9.8 (3), 320, 175; 10000 (4536), 5.2 (1.6), 7.5 (2.3), 380, 210
-
Note: Slight color variations may occur from images shown
What’s Included:
-
Elite Combat 10000 lbs. Capacity Winch with Synthetic Rope – T1000-100AE
