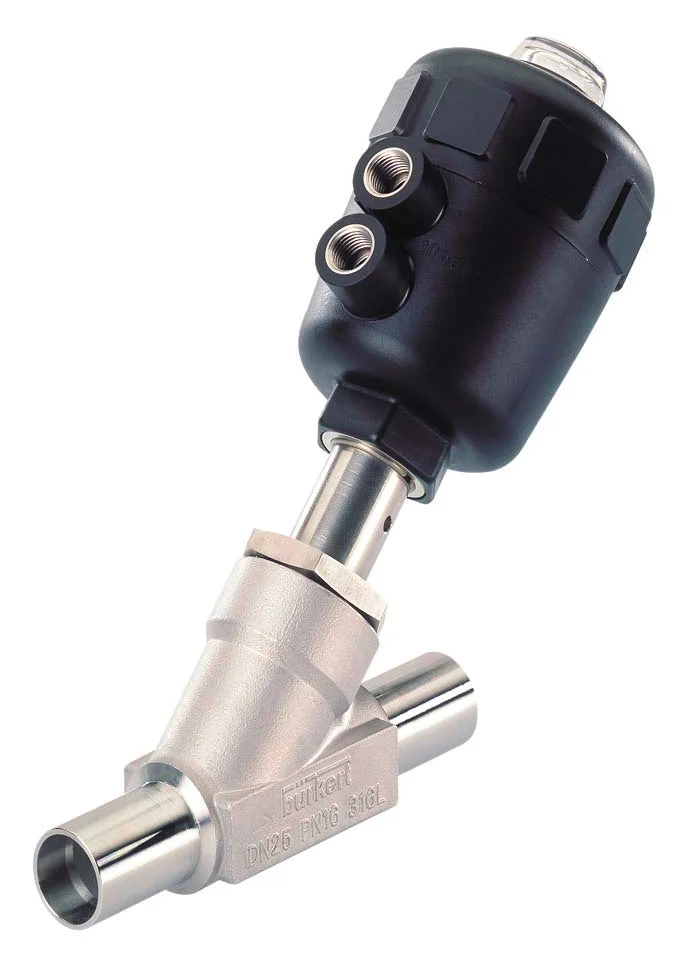

Bürkert 2/2-way pneumatic angle seat valve (type 2000) with DN 25 welded end ports. The valve has a stainless steel housing with PTFE sealing and an orifice size of 25 mm. The control function of the valve is normally open (NO), which means the valve closes when air is applied. Suitable for a media temperatures from -10 to 185°C (14 to 365°F) at a pressure of 0 to 25 bar (0 to 351 psi). The valve has a Kv-value of 19 m3/h (Cv-value of 22.0 gpm). The stainless steel housing is durable, suitable for corrosive media and harsh environments. The PTFE sealing is resistant to almost all chemicals. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium.
Pros:
- Y-shape design allow for higher flow capacity and Kv value compared to vertical globe valves
- Easily mount a compact Burkert 8697 position feedback and control unit on the actuator (not included)
- Versions that close against the flow direction are suited for liquids, steam and gasses
Cons:
- Type 2000 doesn’t have a control cone, so it is not as suited to regulate flow rate as Burkert type 2702 or 2712
Series:
The Bürkert type 2000 2/2-way angle seat valve is a pneumatically actuated on/off valve. The CLASSIC pneumatically operated piston actuator is available in PA, or PPS for higher ambient temperatures. The valve body has been optimized for excellent flow properties and is equipped with a self-adjusting packing gland for added tightness and long-term reliability. These valves are suitable for high viscosity media of up to 600 mm2/s. This valve can be controlled through the use of a pilot valve or through central automation with a valve island. The valve can be fitted with accessories like electrical position feedback, manual override or stroke limitation.
Specifications
Connection size : DN 25
Connection type : Welded end
Material : Stainless steel
Seal material : Teflon (PTFE)
Function : Normally open
Max pressure difference at 20 °C (bar) : 25
Min temperature (°C) : -10
Max temperature (°C) : 185
Kv value [m3/h] : 19
Suitable for vacuum : No
Min control pressure (bar) : 2.4
Max control pressure (bar) : 10
Closing against flow : Yes
Actuator material : Polyamide (PA)
Actuator version : Classic
Valve construction : Valve complete
Temperature environment min (°C) : -10
Temperature environment max (°C) : 55
Actuator size : 63 mm
Suitable for liquids : Yes
CIP capable : Yes
Control air connection material : Stainless steel
Control air connection position : In line direction
Control air connection type : Inner thread cylindrical BSPP-G
Control cone : No
Main valve operating principle : Angle seat valve
SIP capable : Yes
Valve bore (mm) : 25
