Description

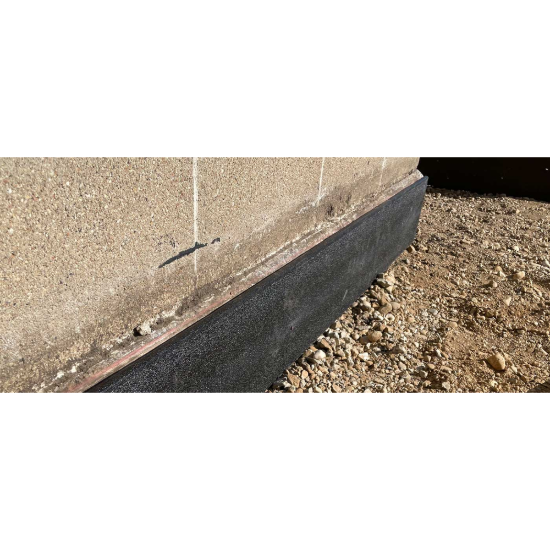

Compressible, resilient joint filler for concrete expansion and contraction. Made from blown sponge rubber with 95% recovery, used in bridges and wastewater structures.
- High resiliency with excellent recovery after compression
- Easy to handle and install
- Offers isolation capabilities
Features
- High resiliency with excellent recovery after compression
- Easy to handle and install
- Offers isolation capabilities
Specifications
| Thickness | 1 inch (25.4 mm) | Width | 36 inch (914.4 mm) |
| Length | 10 (3.05 m) | Density | 30 lb./ft.3 (480 kg/m3) |
| Compression Force Deflection (50% Compression) | 50 psi (0.3 MPa) | Recovery (Compressed 50% at RT for 10 min) | 90% |
| Extrusion (Compressed 50% with 3 edges restrained | 0.250 inch (6.4 mm) | Temperature Range | -20 degF to 160 degF (-84 degC to 71 degC) |
| Standards | AASHTO M 153, Type 1; ASTM D1752, Type 1; Corps of |
