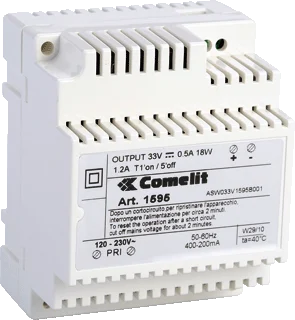

Comelit Ikall Simplebus AC power source unit, (wxdxh), 60x35x85mm. Degree of protection (IP20). Direct mounting possible. Carrier rail mounting possible. Maximum height 35mm. Modular design, output current 11.2A (for rail mounting), nominal supply voltage AC 50 Hz 110-240V.
Specifications
Voltage type of supply voltage : DC
1st secondary output voltage at AC (V) : 33 V to 35 V
Max. output current 1 (A) : 1.2
Secondary voltage adjustable : No
Rated voltage AC (V) : 110 V to 240 V
Rated voltage DC (V) : 33 V to 35 V
Electrical connection : Screw-/spring clamp connection
Output voltage stabilized : No
Power consumption (VA) : 18
Power output (W) : 18
Stabilized : No
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : Yes
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : Level a
Built-in height (mm) : 85
