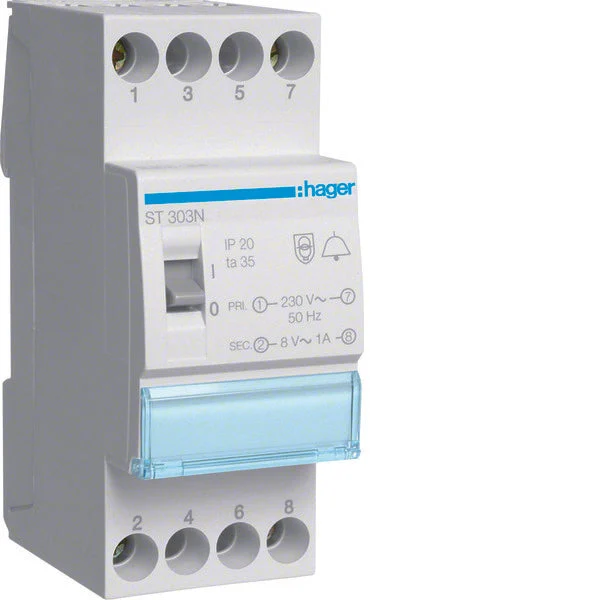

Hager VISION Bell Transformer – ST303N

A doorbell transformer ensures the proper operation of the doorbell. Because a doorbell operates on low-voltage electricity, it cannot be connected to 230V. This Hager bell transformer converts the power supply to the correct number of volts. With primary switch and terminal for secondary wiring.

Specifications

Primary voltage (V) : 230
Secondary voltage 1 (V) : 8
Secondary voltage 2 (V) : 8
Secondary amperage 1 (A) : 1
Max. output power (W) : 8
Max. output current (A) : 1
Max. power loss (W) : 1.5
Type of transformer : Standard bell ringing transformer
Surface mounting : Yes
Flush-mounted installation : No
Modular version : Yes
Length (mm) : 111
Width (mm) : 35
Height (mm) : 65
Width in number of modular spacings : 2
Short-circuit protected : Yes
Temperature protection : Yes
With on/off switch : No
