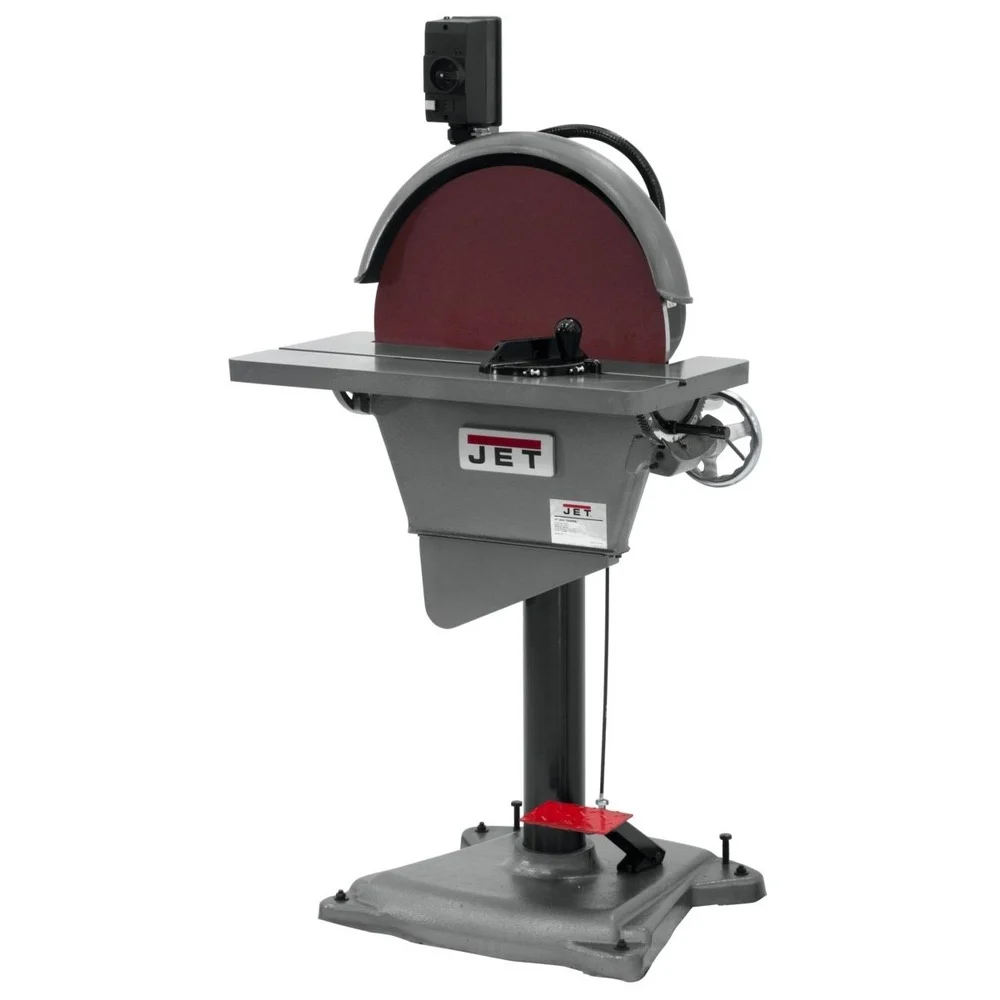

JET J-4421-2 20 in. 3Ph 220V Disc Sander – JT9-577010

Product Features & specs :

JET J-4421-2 20 in. 3Ph 220V Disc Sander

Details

20 in. 3Ph 220V Disc Sander – 577010

Features:

• Tilting table capability adds flexibility of 45 degrees forward and 15 degrees backward on positive lock rack and gear

• Table can be lowered below the disc to accommodate large work pieces

• Direct drive motor

• Low voltage protection switch

• Rigid column and heavy duty base

• Miter gauge

• Extra large tilting table lowers completely below disc for use of the entire disc surface

• Wrap over guard for added safety

What’s Included:

• 20 in. 3Ph 220V Disc Sander – 577010

Power Source

Corded

PreWired Voltage

220V

Table Type

Cast Iron

Amperage

9.6

UL Safety

No

Disc Table Tilt (Down)

45 Degrees

Pre-Wired Voltage

220V

CSA Safety

No

Wifi compatibility

No

Table Tilt (Down)

45 Degrees

Disc Table Tilt (Up)

15 Degrees

Table Dimensions

27-1/2 in x 10-1/2 in

Operating Speed (RPM)

1725

Bluetooth Compatibility

No

Motor Phase

3

Table Tilt (Up)

15 Degrees

Horsepower

3

Voltage

220V

AC Voltage

220/440V

Table Slots

3/8 in x 3/4 in

Type

Stationary

Disc Diameter

20 in

ETL Safety

No

Disc Operating Speed (RPM)

1725

Length

30 in.

Width

28.5 in.

Height

52 in.

Weight

400 lbs.

Warranty Term

2 Year Limited
