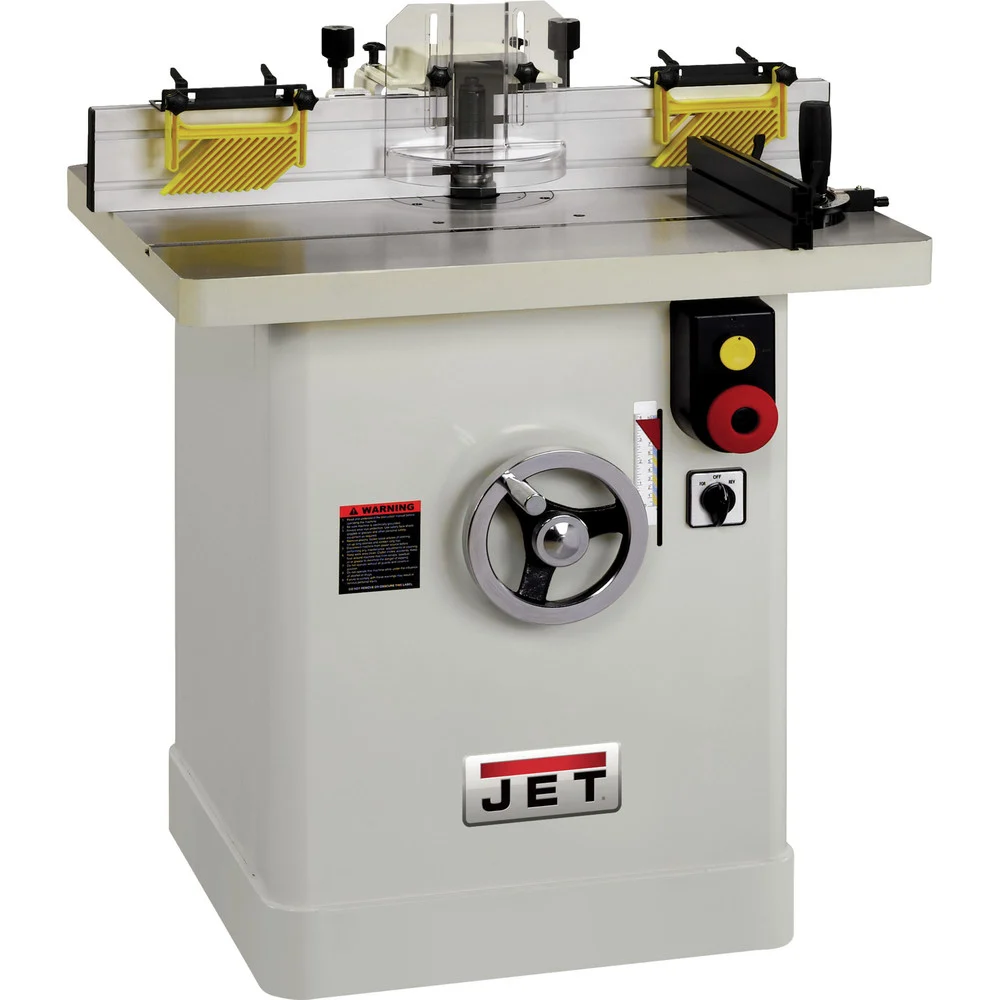

JET JWS-35X5-1 5 HP 1-Phase Industrial Shaper – JT9-708326

Product Features & specs :

JET JWS-35X5-1 5 HP 1-Phase Industrial Shaper

Details

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

Features:

• 4 in. Dust port built into fence for convenient hookup to any dust collection system

• Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

• Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs

• Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters

• Large 26-3/4 in. x 32-1/4 in. precision-ground cast iron table provides a durable work area and is predrilled for power feeder

• Poly-V-belt transfers maximum power to the spindle

• Powerful 5HP, 1Ph motor with magnetic controls

• Reversible spindle speeds for diverse shaping jobs

• Starting Pins for irregular shaping

• V-belt transfers maximum power to the spindle.

What’s Included:

• 5 HP 1-Phase Industrial Shaper – 708326

Power Source

Corded

Fence Length

16 in

PreWired Voltage

230V

Amperage

17

UL Safety

No

Spindle Diameter

1-1/4 in

Opening Diameter (Insert)

2-9/16 in / 4-5/16 in

CSA Safety

No

Wifi compatibility

No

Fence Height

4-3/4 in

Opening Diameter (Table)

6-19/64 in

Dust Port Size

4 in

Table Dimensions

32-1/4 in x 26-3/4 in

Bluetooth Compatibility

No

Max. Spindle Speed (RPM)

10000

Motor Phase

1

Table Height

33-1/4 in

Horsepower

5

Voltage

230V

Motor Type

Brushed

Spindle Travel

4 in

Min. Spindle Speed (RPM)

4000

ETL Safety

No

Length

32.25 in.

Width

28.25 in.

Height

42.38 in.

Weight

475 lbs.

Warranty Term

5 Year
