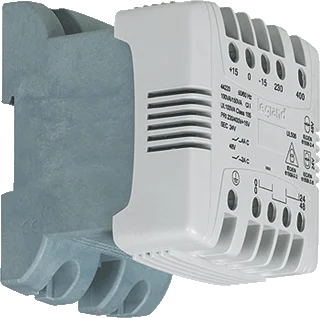

Legrand 1-Phase Transformer 215V | 44213

This safety transformer by Legrand is intended to be used as a safety Transformer only. The primary voltage is 230V, and the secondary voltage is 24V. The (measuring the apparent power) 100VA. The safety transformer comes with an electrostatic screen. It can be mounted on DIN rails measuring 7.5mm without mounting plates or 15mm with mounting plates. The transformer also includes a coupling strip that allows for quick connections between zero and ground. Conform to EC EN 61558-2-6.

Specifications

Primary voltage 1 (V) : 215 V to 215 V
Primary voltage 2 (V) : 230 V to 230 V
Primary voltage 3 (V) : 245 V to 245 V
Primary voltage 4 (V) : 385 V to 385 V
Primary voltage 5 (V) : 400 V to 400 V
Primary voltage 6 (V) : 415 V to 415 V
Secondary voltage 1 (V) : 24 V to 24 V
Rated apparent power (VA) : 100
Short-circuit-proof : No
Type of insulation material according to IEC 85 : B
Relative short circuit voltage (%) : 8.5
Degree of protection (IP) : IP2X
Built as energy saving transformer : No
Built as isolating transformer : Yes
Built as safety transformer : Yes
Ring core : No
Modular version : Yes
Suitable for mounting on PCB : No
