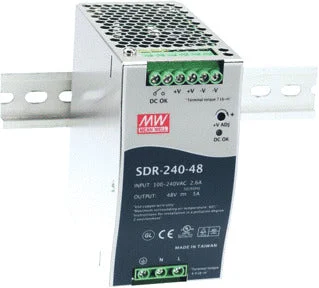

Mean Well SDR DC Power Supply 48V | SDR-240-48

Mean Well SDR DC Power Supply 48V | SDR-240-48

Specifications

Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 48 V to 48 V
Max. output current 1 (A) : 5
Secondary voltage adjustable : Yes
Rated voltage AC (V) : 88 V to 264 V
Rated voltage (AC 60 Hz) (V) : 88 V to 264 V
Rated voltage DC (V) : 124 V to 370 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power output (W) : 240
Stabilized : Yes
Short-circuit-proof : Yes
Suitable for safety functions : No
SIL (IEC 61508) : None
Refurbished : No
Modular version : No
Wall mounting possible : No
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 125.2
Built-in width (mm) : 63
Width in number of modular spacings : 63
