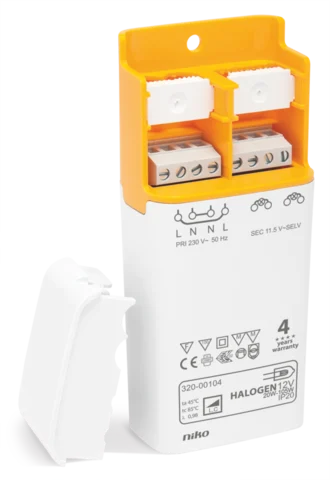

This electronic transformer has a capacity of 105 W and is universally dimmable. It is designed for the connection of low-voltage loads (12 V) and is equipped with screw terminals on both the primary and secondary sides. Two loads can be connected to the secondary side, while on the primary side, the two inputs facilitate interconnection (maximum 8x).
The easy-to-mount click cap provides strain relief. The transformer is incredibly compact, making it perfect for installation in small spaces. This transformer is also suitable for flush mounting in furniture.
It features integrated thermal protection and protection against short-circuit, overload, and overheating. This transformer has an IP20 protection degree.
Specifications
Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.6 V to 11.6 V
Power (W) : 35 W to 105 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Screw connection
Connection type secondary side : Screw connection
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : White
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
Number of output positions (pairs) : 2
Degree of protection (IP) : IP20
