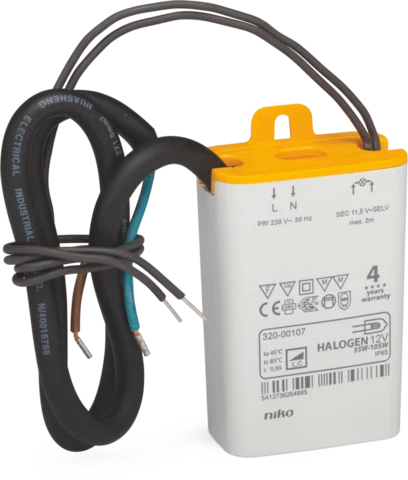

This electronic transformer has a capacity of 105W and is universally dimmable. It is suitable for the connection of low-voltage loads (12 V). This transformer has an IP65 protection degree, which means it is dust-free and splashproof. As a result, it is extremely well-suited for installation in a damp room, such as a bathroom or kitchen.
For a quick and correct connection, you connect the rubber cable on the primary side to a Niko mini-connection box. The silicon wire on the secondary side can be directly connected to a spotlight. The cables are fixed with resin.
The transformer is extremely compact and is therefore very well-suited for installation in small spaces. This transformer is also suitable for flush mounting in furniture. It is equipped with integrated thermal protection and integrated protection against short-circuit, overload, and overheating.
Specifications
Type of transformer : Electronic transformer
Safety transformer : No
Output voltage (V) : 11.6 V to 11.6 V
Power (W) : 35 W to 105 W
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : No
Dimming programmable : No
Dimming with push-button : Yes
Connection type primary side : Unpreassembled connection cable
Connection type secondary side : Unpreassembled connection cable
Surface-mounted : No
Built-in : Yes
Material : Plastic
Color : White
Short-circuit protected : Yes
Overload protection : Yes
Overtemperature protection : Yes
Number of output positions (pairs) : 1
Degree of protection (IP) : IP65
