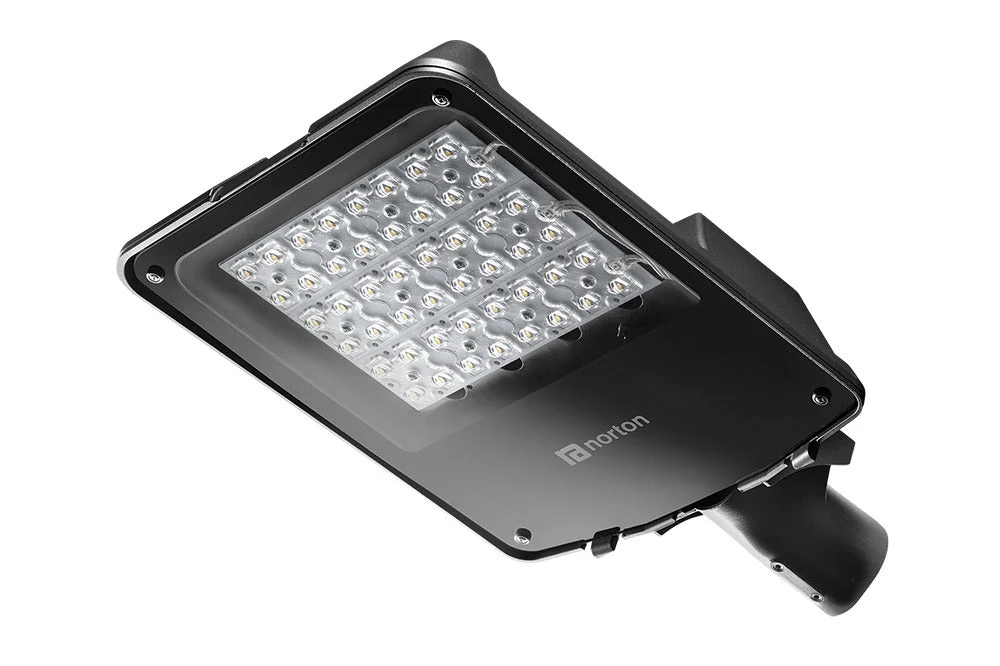

Norton KFA LED Street Lighting Fixture – 3139017016

Norton KFA LED Case luminaire street and square lighting fixture, length 544mm, effective luminous flux according to IEC 20000lm, specific luminous flux luminaire 125lm/W, temperature 4000K, light color white, suitable for lamp power 155W, system power 155W, set-up/sliding, housing anthracite.

Specifications

Mounting method : Post top/side entry
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : Anthracite
Material cover : Glass transparent
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Type of control gear : LED operating device current-controlled
With control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Light distributor : Focal lens
Color consistency (McAdam ellipse) : SDCM4
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Rated life time L90/B10 at 25 °C (h) : 100000
Degree of protection (IP) : IP66
Adjustable optics : No
Suitable for spigot size (mm) : 42 mm to 60 mm
Impact strength : IK10
Protection class : I
Luminaire with limited surface temperature, sign “D“ : No
Rated ambient temperature according to IEC62722-2-1 (°C) : -40 °C to 55 °C
Remote control : None
With radio control : No
With light regulation program control : No
With connection cable : Yes
Cable length (m) : 1
Suitable for lamp power (W) : 155 W to 155 W
Max. system power (W) : 155
Rated luminous flux according to IEC 62722-2-1 (lm) : 20000
Luminaire efficacy (lm/W) : 125
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 70-79
Power factor : 0.95
Width (mm) : 354
Height/depth (mm) : 95
Length (mm) : 544
Type of wiring : Ending
Number of poles : 3
Conductor cross section (mm²) : 1.5
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Connection type : Other
Compatible with Amazon Alexa : No
IFTTT support available : No
