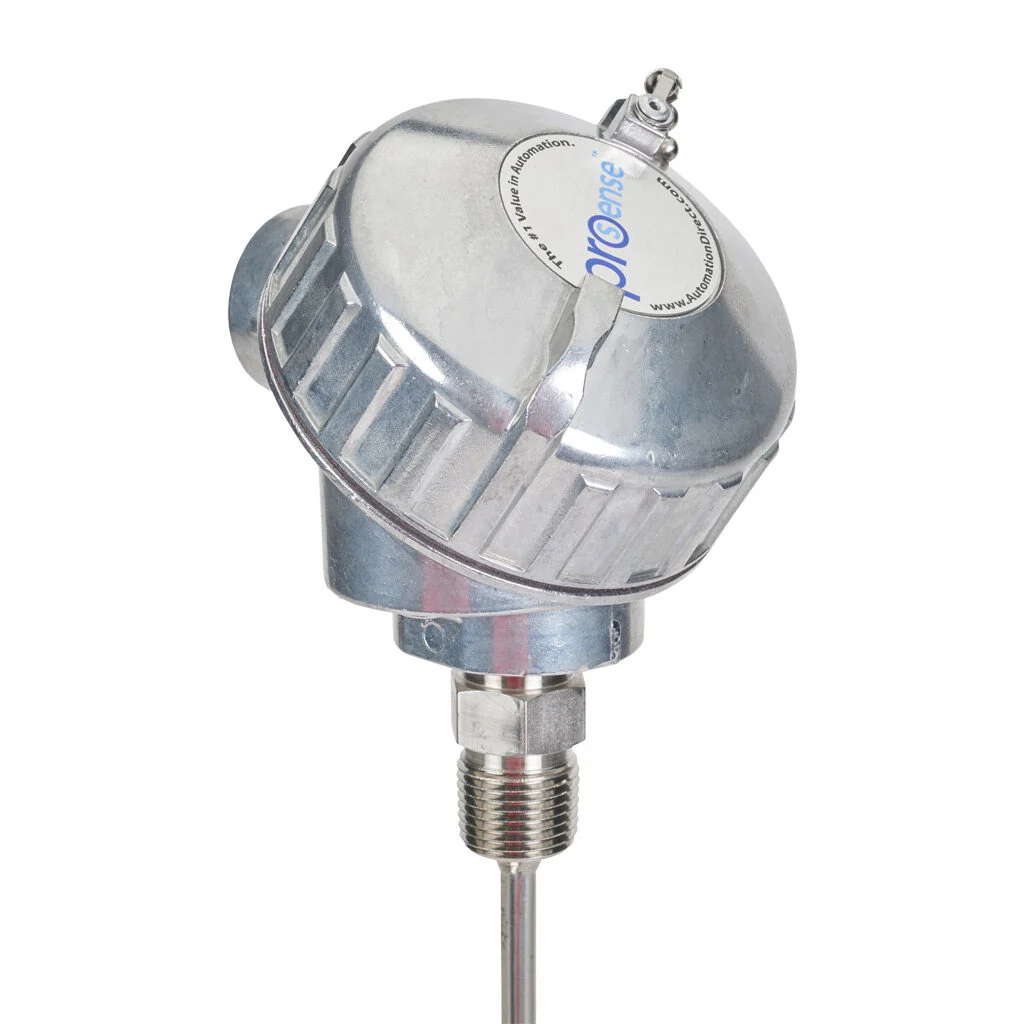

ProSense temperature sensor, 10K Type 3 thermistor, connection head probe, 12in insertion length, 1/4in probe diameter, stainless steel sheath, 1/2in male NPT process connection, aluminum screw cover head with 2ft 24 AWG wire leads.
Product Attribute Table
Sensor Element : 10K Type 3 thermistor
Sensor Type : Connection head probe
Media Type : Liquid, water, oil, chemicals, gases and air
Accuracy : +/-0.36 deg F (0.2 deg C)
Insertion Length : 12in
Probe Diameter : 1/4in
Sheath Material : Stainless steel
Process Connection : 1/2in male NPT
Electrical Connection : Aluminum screw cover head with 2ft 24 AWG wire leads
Conductor Insulation Material : PVC
Temperature Sensing Range : -40 to 257 deg F
IP Rating : IP66
NEMA Rating : 4X
