O3D304

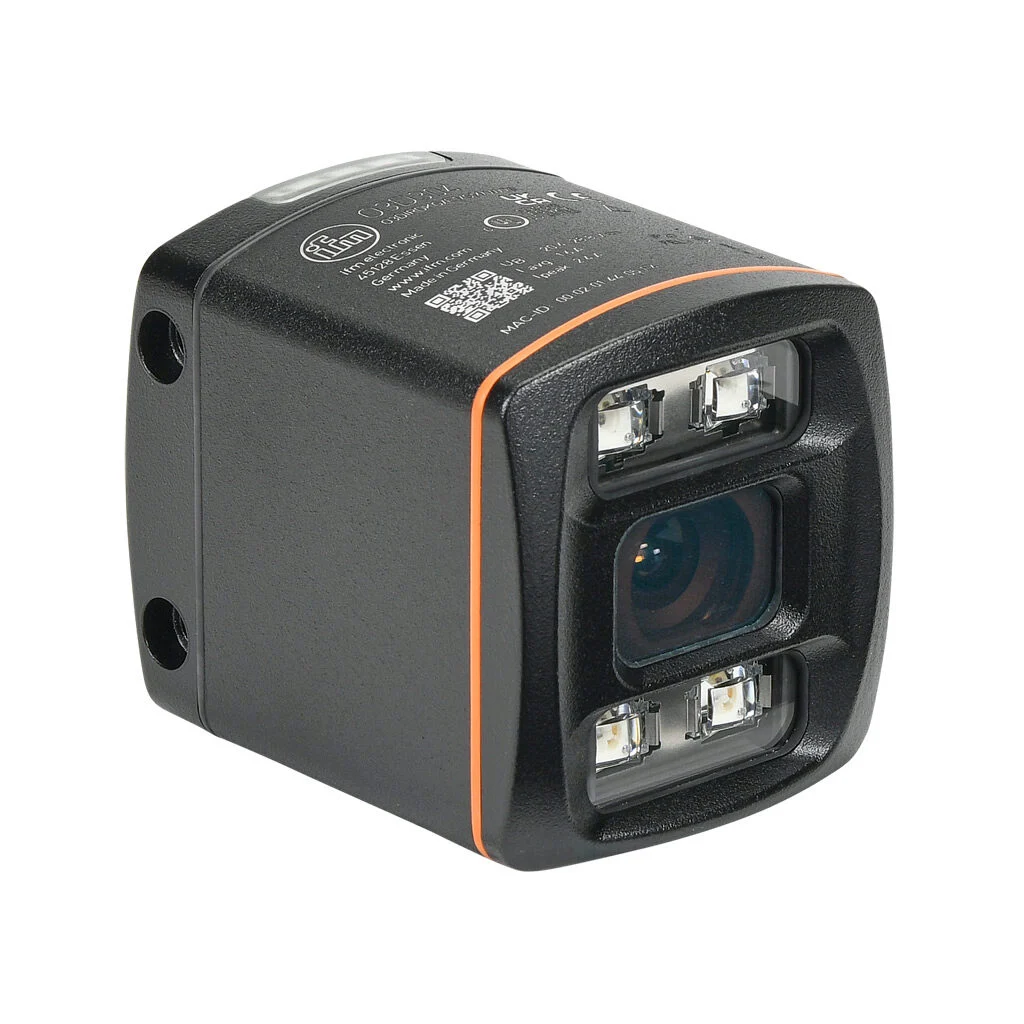

ifm efector O3D series 3D vision sensor, 500-5000mm operating distance, wide angle lens, 176 x 132 resolution, infrared light emission, TCP/IP and EtherNet/IP, IP65.

Product Attribute Table

Series : O3D
Operating Distance : 500-5000mm
Lens Type : Wide angle
View Area 1 : 0.4 x 0.68m @ 0.5m
View Area 2 : 4.0 x 5.5m @ 5m
Response Time : 25Hz
Resolution : 176 x 132
Light Emission : Infrared
Input : NPN or PNP
Output : 4-20 mA or 0-10 VDC
IP Rating : IP65
Housing Material : Die-cast aluminum
Housing Size : 65 x 72 x 82.6mm body
Lens Material : Gorilla Glass
Operating Voltage : 20.4-28.8 VDC
Operating Temperature : -10 to 50 deg C
Connection : 8-pin M12 quick-disconnect and (1) 4-pin M12 D-coded
Port Protocol(s) : TCP/IP and EtherNet/IP
Additional Information : Purchase cable separately
