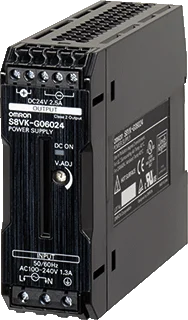

Omron Power Supplies S8VK DC power supply unit, (wxdxh), 32x110x90mm. 1st Secondary voltage 21.6V – 27.6V. Voltage type AC/DC. Nominal supply voltage AC 50 Hz 100- 240V. Modular design for railmounting. Output current 12.5A, power output 60W.
Specifications
Voltage type of supply voltage : AC/DC
1st secondary output voltage at DC (V) : 21.6 V to 27.6 V
Max. output current 1 (A) : 2.5
Secondary voltage adjustable : No
Nominal value output voltage 1 (V) : 24
Nominal value output current 1 (A) : 2.5
Rated voltage AC (V) : 100 V to 240 V
Rated voltage (AC 60 Hz) (V) : 100 V to 240 V
Rated voltage DC (V) : 90 V to 350 V
Electrical connection : Screw connection
Output voltage stabilized : No
Power consumption (VA) : 161
Power output (W) : 60
Stabilized : No
Short-circuit-proof : No
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : No
Wall mounting possible : Yes
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 100
Built-in width (mm) : 32
Degree of protection (NEMA) : Other
Width in number of modular spacings : 1
