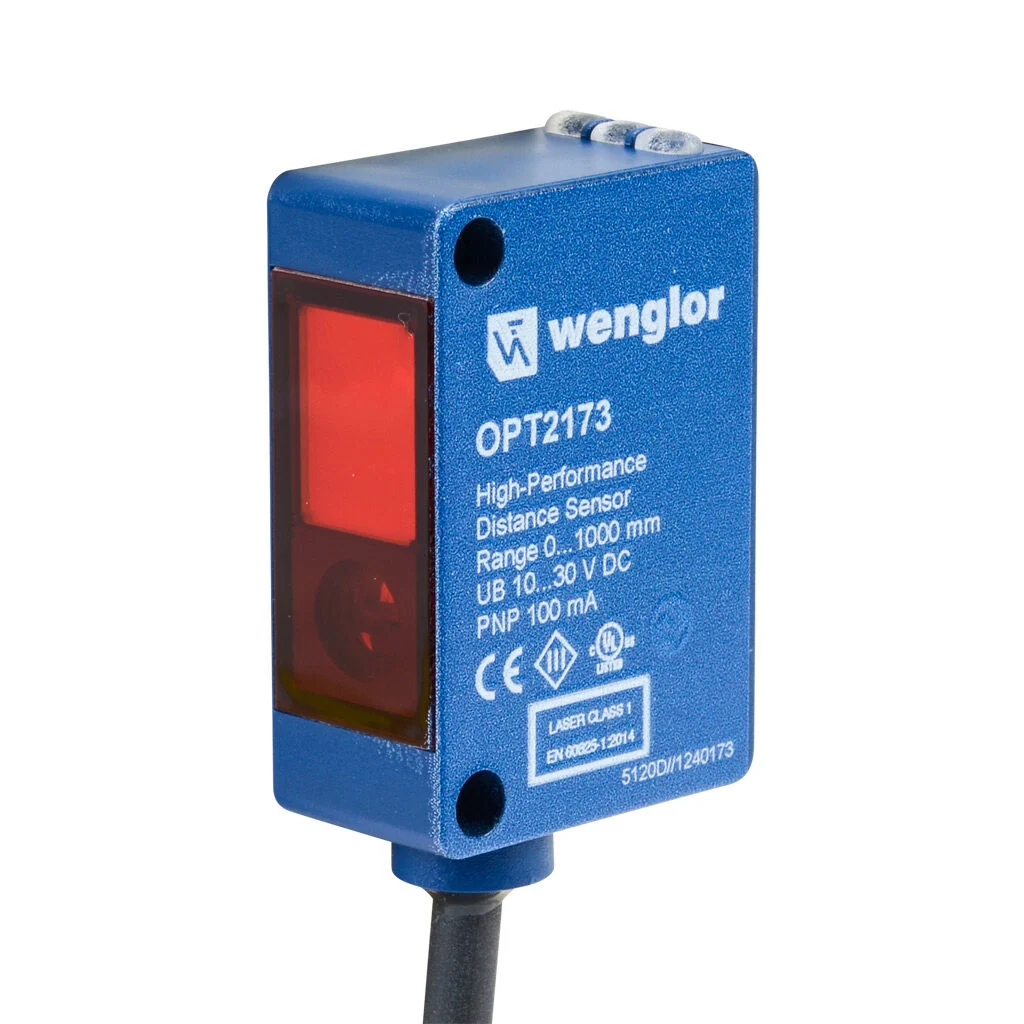

Wenglor photoelectric sensor, rectangular, background suppression, Class 1 red laser, 0-1m sensing distance, complementary light-on/dark-on, PNP, pushbutton and IO-Link, 32 x 22 x 12mm body, plastic, 7.8in/200mm cable length, 4-pin M12 quick-disconnect.
Product Attribute Table
Shape : Rectangular
IP Rating : IP67
Application : Laser, standard duty and IO-Link
Housing Size : 32 x 22 x 12mm body
Housing Material : Plastic
Sensing Method : Background suppression
Sensing Technology : Time of Flight technology
Operating Voltage : 10-30 VDC
Switching Output : PNP
Sensing Distance : 0-1m
Operation Mode : Complementary light-on/dark-on
Switching Frequency : 500 Hz
Light Emission : Class 1 red laser
IO-Link Compatible : Yes
User Interface : Pushbutton and IO-Link
Cable Length : 7.8in/200mm
Connection : 4-pin M12 quick-disconnect
Communication Port and Connection Type(s) : 4-pin M12 A-coded (IO-Link) port(s)
Port Protocol(s) : IO-Link Class A Device
Port Speed(s) : IO-Link COM2
IO-Link Version : IO-Link v1.1
Standard I/O Mode Supported : Yes
Additional Information : Purchase cable separately
