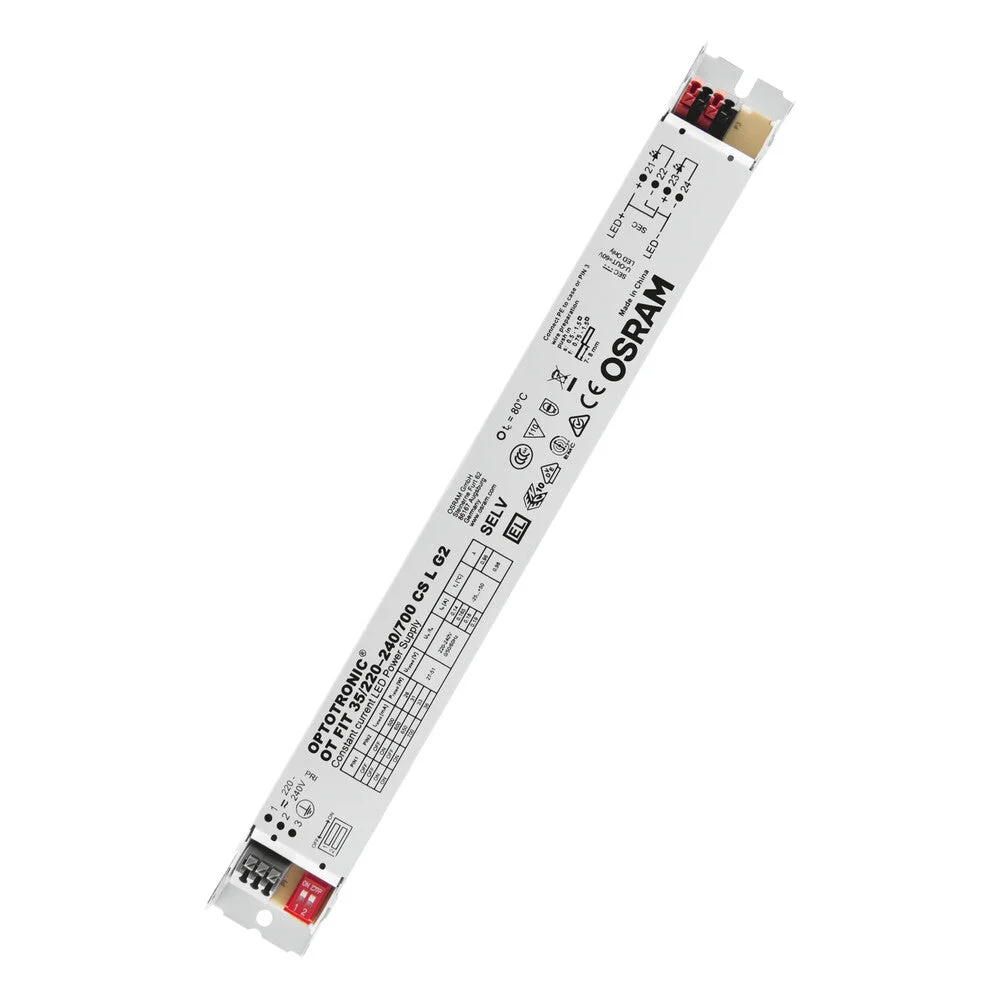

Linear / Area Constant Current – Non-dimmable. Product features include a line frequency of 0 Hz, 50 Hz, or 60 Hz. The product offers a versatile scope of application due to its output power range of up to 75 W and a supply voltage of 220 to 240 V. It is available with an output current range of up to 1,400 mA. This SELV system product has flexible current setting with 4 currents and a lifetime of up to 100,000 hours at a temperature of 65 degrees Celsius, with a maximum failure rate of 10%. The product is highly efficient and provides a high quality of light thanks to its low output ripple current. It fulfills safety requirements due to overload, overtemperature, and Hot Plug protection.
This product is ideal for linear lighting in offices, education institutions, industries, storage areas, and retail spaces. It’s also suitable for installation in emergency lighting systems according to IEC 61347-2-13, appendix J and can be used for luminaires of protection class I.
Specifications
Model : Static
Suitable for outdoor use : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI : No
Dimming DSI : No
Dimming DMX : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
Constant light output (CLO) : No
No dim function : Yes
Housing : Metal housing
Suitable for constant current : Yes
Suitable for constant voltage : No
Output voltage (V) : 27 V to 51 V
Output current (mA) : 500 mA to 500 mA
Suitable for DC-voltage (primary side) : Yes
Output power (W) : 5 W to 13 W
Degree of protection (IP) : IP20
Protection class : I
Length (mm) : 280
Width (mm) : 30
Height (mm) : 21
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : Yes
