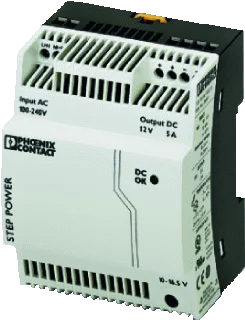

Primary-switched STEP power supply for DIN rail mounting. Input = 1 phase, output = 12 VDC/5 A.
Specifications
Voltage type of supply voltage : AC
1st secondary output voltage at DC (V) : 12 V to 16.5 V
2nd secondary output voltage at DC (V) : 10 V to 10 V
Max. output current 1 (A) : 5
Max. output current 2 (A) : 5.5
Max. output current 3 (A) : 9
Secondary voltage adjustable : Yes
Nominal value output voltage 1 (V) : 12
Nominal value output current 1 (A) : 5
Rated voltage AC (V) : 100 V to 240 V
Rated voltage (AC 60 Hz) (V) : 100 V to 264 V
Rated voltage DC (V) : 95 V to 250 V
Electrical connection : Screw connection
Output voltage stabilized : Yes
Power consumption (VA) : 125
Power output (W) : 60
Stabilized : Yes
Short-circuit-proof : Yes
Degree of protection (IP) : IP20
Suitable for safety functions : Yes
SIL (IEC 61508) : None
Refurbished : No
Modular version : Yes
Direct mounting possible : Yes
Wall mounting possible : Yes
Rail mounting possible : Yes
Performance level (EN ISO 13849-1) : None
Built-in height (mm) : 90
Built-in width (mm) : 72
Degree of protection (NEMA) : Other
Width in number of modular spacings : 4
